342-371-30-IP-2 Mitutoyo Crimp Micrometer .8" to PC Package

342-371-30-IP-2 Mitutoyo Crimp Micrometer .8" to PC Package

  • $ 722.95
  • Save $ 38.05


Mitutoyo Crimp Height Micrometer to PC Package

This complete package provides all of the items required to be able to measure your products with a Mitutoyo 0-.8" Digital Crimp Height Micrometer, and then send the measured data to a PC through a USB port.

The incoming data is converted to a keyboard style entry, so wherever you can type in data is where your incoming data will be placed.

Works great with MS Word, Excel..., even SPC software packages.

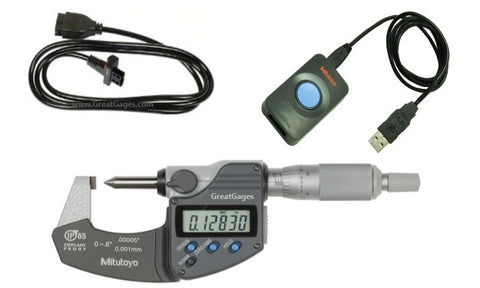

Complete package includes the following...

  • Mitutoyo Digital Crimp Height Micrometer w/SPC Output
  • 2m SPC Cable
  • Mitutoyo USB Data Input Tool

Micrometer Details...

  • 0-.8" / 0-20mm Measuring Range
  • .00005" / 0.001mm Resolution
  • +/- .00015" Accuracy
  • Origin Set function
  • Zero / ABS function
  • Data Hold function
  • in/mm conversion
