36-14-MO Mylar Overlay
360° Combination Radius Chart

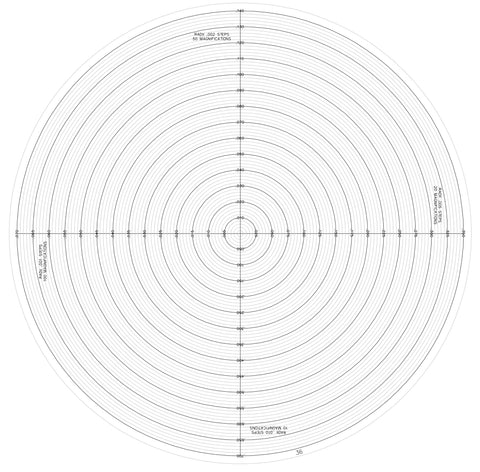

This Mylar Overlay displays Radius in all quadrants on one chart.
Increments per magnification are as follows...

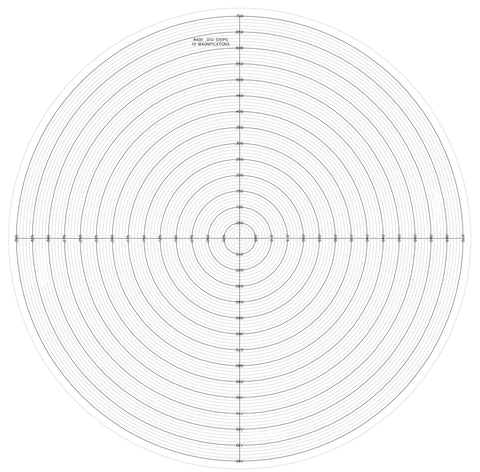

- 10X Mag - .010" increments

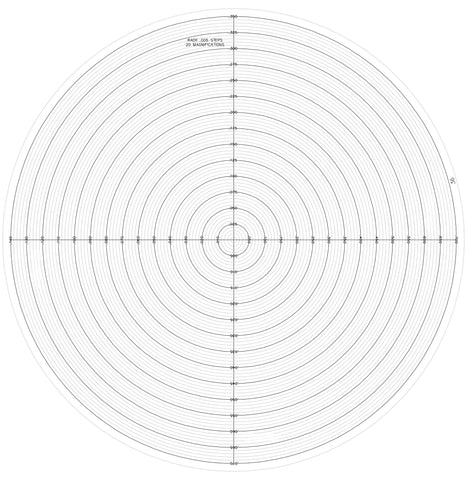

- 20X Mag - .005" increments

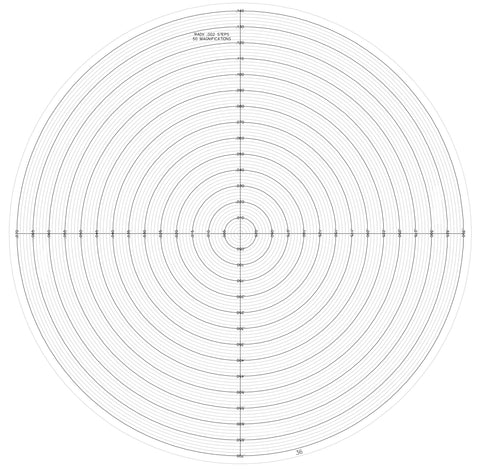

- 50X Mag - .002" increments

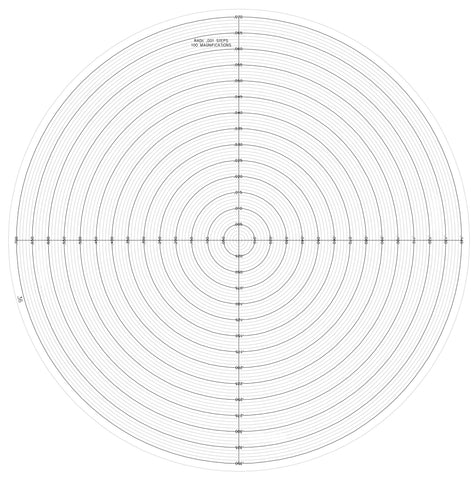

- 100X Mag - .001" increments
13.5" Diameter Mylar Overlay fits both Mitutoyo Optical Comparator models...
- PH-A14
- PH-3515F
This item is made to order, so the lead time for shipping is approximately 1 - 2 weeks after receipt of order.
Please indicate your Lens Magnification when adding to cart.
