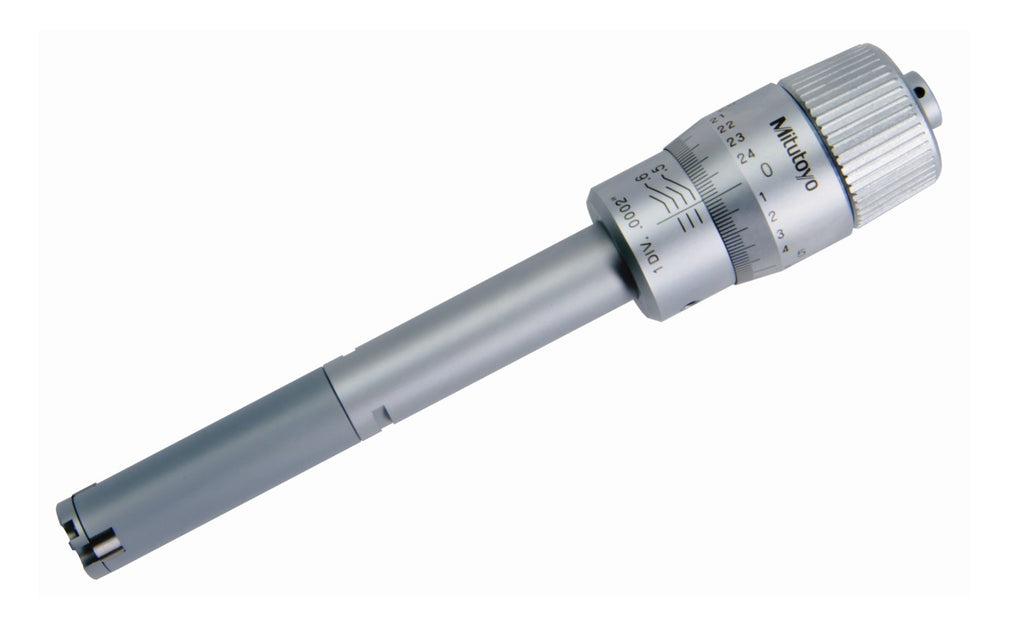

Mitutoyo Holtest Type II Internal Micrometer The Mitutoyo Holtest is a versatile, self-centering three-point internal micrometer for the accurate and efficient direct-measurement of internal diameters. Three anvils, evenly spaced at 120° apart, contact the internal wall surfaces and find true alignment with the axis of the bore for accurate ID measurement. Specifications Include... 0.50" - .65" Measuring Range 0.0002" Graduations Features Include... Hardened Steel Measuring Contact Points provide excellent durability allow the instrument to measure close to the bottom of a blind hole. Measurement can be taken closer to the bottom of the blind bore. Can measure deep holes using an Extension rod (optional). With Ratchet Stop for constant force. Setting Rings for zero point adjustment are optional. Supplied in fitted plastic case. PLEASE SELECT CALIBRATION OPTION FROM PULL DOWN MENU. Standard Calibration Usually takes about 3-4 Weeks to ship from Mitutoyo. 5-Day Calibration Ships out within 1 Week after receipt of order. 1-Day Calibration Ships out in 1 Day after receipt of order. INCLUDES CERTIFICATE OF CALIBRATION TRACEABLE TO NIST. Mitutoyo now is offering their most popular gages with an ISO/IEC 17025 Accredited Certificate of Calibration that is traceable to NIST. These calibrations are performed at Mitutoyo America's A2LA Accredited Calibration Laboratory in Aurora, Illinois after receipt of order. The Open Date Put Into Service is to be filled out by the end user when the gage is first used.
