368-870 Mitutoyo Holtest II Internal Micrometer 2.0" - 2.5"

368-870 Mitutoyo Holtest II Internal Micrometer 2.0" - 2.5"

  • $ 739.10
  • Save $ 38.90

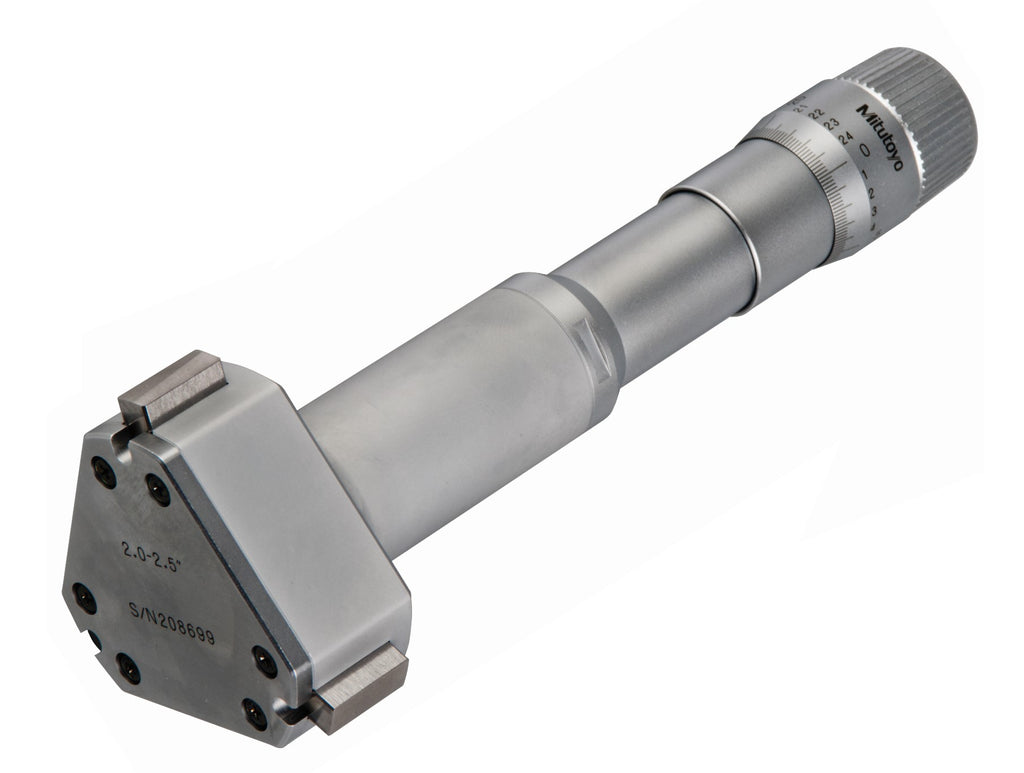

Mitutoyo Holtest II Internal Micrometer

These Holtests are versatile, self-centering three-point internal micrometers for the accurate and efficient direct-measurement of internal diameters. Three anvils, evenly spaced at 120° apart, contact the internal wall surfaces and find true alignment with the axis of the bore for accurate ID measurement.

Specifications Include...

  • 2.00" - 2.50" Measuring Range
  • 0.0002" Graduations
  • +0.00015" Accuracy

Features Include...

  • Hardened Steel Measuring Contact Points provide excellent durability allow the instrument to measure close to the bottom of a blind hole.
  • Measurement can be taken closer to the bottom of the blind bore.
  • Can measure deep holes using an Extension rod (optional).
  • With Ratchet Stop for constant force.
  • Setting Rings for zero point adjustment are optional.
  • Supplied in fitted plastic case.
