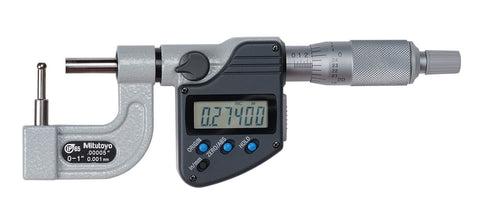

395-363-30 Mitutoyo Tube Micrometer 0-1"
Mitutoyo Tube Micrometer w/ SPC Output
Designed to measure the wall thickness of various tubing.
Specifications include...
- 0-1" / 25.4mm Measuring Range
- 0.00005" / 0.001mm Resolution
- + 0.00015" Accuracy
Spherical Post Dimensions...
- 0.272" Bottom Post Diameter
- 0.157" Center Post Diameter
- 0.185" Spherical Ball on Top
- 0.500" Height of Post from Bottom of Center Post to Centerline of Spherical Ball on Top
Features include...
- Carbide Tipped Measuring Face
- Ratchet Stop for constant force
- SPC Output
- Supplied in fitted case
- IP65 Rated Protection
