Sale Off
422-330-30-CAL Mitutoyo Type A Digital Blade Micrometer 0-1

422-330-30-CAL Mitutoyo Type A Digital Blade Micrometer 0-1" with CAL Cert

$ 960.00$ 914.00

Customer Reviews

Product Description

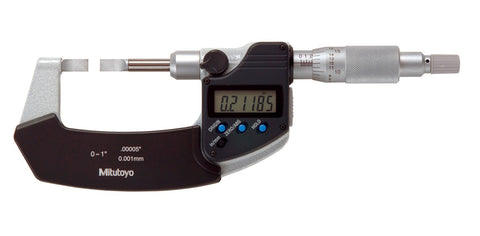

Mitutoyo Type A Blade Micrometer w/SPC Output

The anvil and the spindle have a blade for measuring the groove diameter of shafts, keyways, and other hard-to-reach portions.

Specifications include...

  • 0-1" / 0-25mm Measuring Range
  • 0.00005" / 0.001mm Resolution
  • + .00015" Accuracy

Features include...

  • Ratchet Stop for constant force
  • SPC Output
  • Supplied in fitted case

Blade Dimensions...

  • see drawing...

PLEASE SELECT CALIBRATION OPTION FROM PULL DOWN MENU.

  • Standard Calibration
    • Usually takes about 3-4 Weeks to ship from Mitutoyo.
  • 5-Day Calibration
    • Ships out within 1 Week after receipt of order.
  • 1-Day Calibration
    • Ships out in 1 Day after receipt of order.

INCLUDES CERTIFICATE OF CALIBRATION TRACEABLE TO NIST.

Mitutoyo now is offering their most popular gages with an ISO/IEC 17025 Accredited Certificate of Calibration that is traceable to NIST.

These calibrations are performed at Mitutoyo America's A2LA Accredited Calibration Laboratory in Aurora, Illinois after receipt of order.

The Open Date Put Into Service is to be filled out by the end user when the gage is first used.
