Mitutoyo Digimatic Holtest Three-Point Internal Micrometer Set

Introducing the Mitutoyo Digimatic Holtest Three-Point Internal Micrometer Set , a versatile and durable measurement solution for precision work. Boasting an interchangeable-head set, titanium-coated measuring pins for durability, and an IP65 protection level against water and dust, this micrometer set is ideal for machining environments with coolant fluid.

The large LCD display with a 7.5mm character height ensures easy readings, complemented by features such as TiN-coated contact points for measuring blind holes, a ratchet stop for constant force, and optional extension rods and setting rings. Supplied in a fitted plastic case for models up to 100mm/4" and a wooden case for sizes beyond, this set embodies precision and functionality. With detailed technical specifications, functions like zero-setting and data output, and a range of optional accessories, the Mitutoyo Digimatic Holtest Three-Point Internal Micrometer Set is an indispensable tool for professionals seeking accurate measurements in various applications.

These are three-point internal micrometers that offer you the following benefits:

• Interchangeable-head set.
• Titanium-coated measuring pins give you excellent durability and impact resistance.
• They also have excellent resistance against water and dust (IP65 protection level), allowing you to use this product in machining situations that include splashing coolant fluid.
• Large LCD display with character height of 7.5mm enables you to read measurements easily.
• With setting rings and extensions.

Features:

• TiN-coated contact points provide excellent durability and impact resistance and allow the instrument to measure to the bottom of a blind hole. (up to 100mm/4"models)
• Large LCD readout.
• Functions available: Presetting, Zero/ABS, power On / Off Data hold, Data output, Error alarm, Battery replacement alarm.
• With Ratchet Stop for constant force.
• Can measure deep holes by attaching an Extension rod(optional).
• Setting rings for origin point setting are optional.

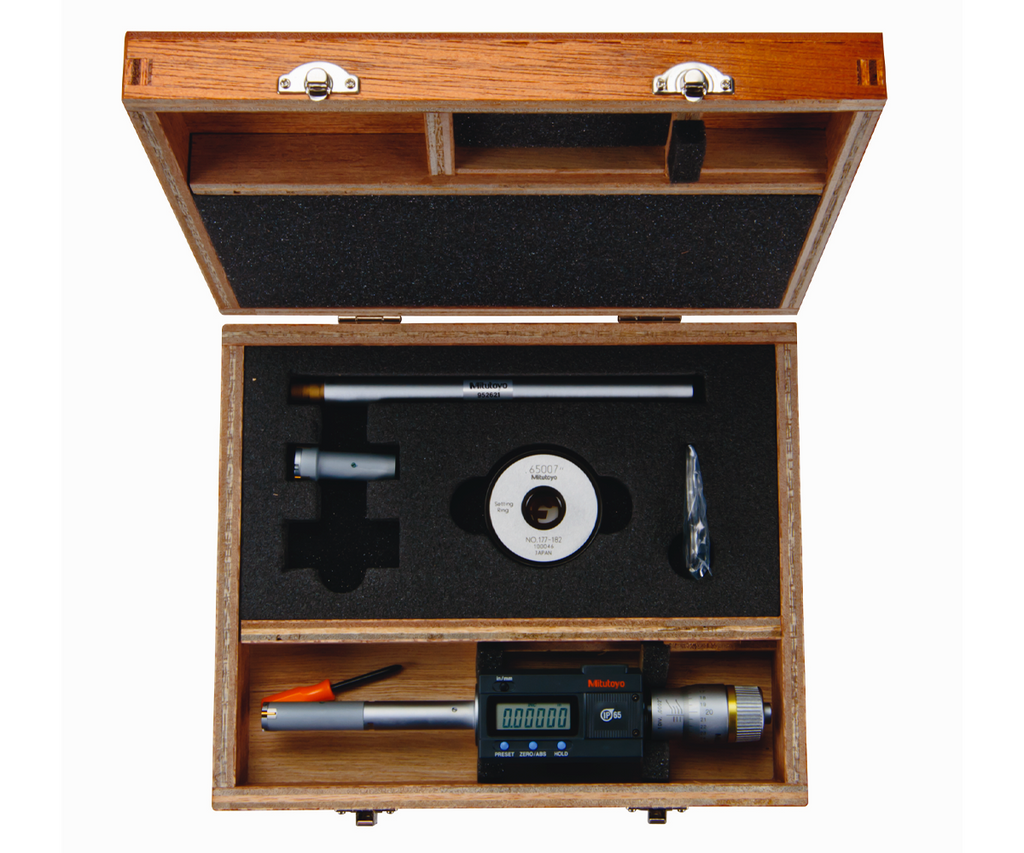

• Supplied in fitted plastic case up to 100mm / 4". Over 100mm / 4" supplied in wooden case.

Technical Data:

• Measuring Range: 0.5-0.8" / 12.7-20.32mm
• Resolution: 0.00005" / 0.001mm
• Contact point: TiN-coating
• Measuring method: Three-point method
• Display: LCD
• Battery: SR44 (2 pcs.), 938882
• Battery life: Approx. 8 months under normal use

Function:

• Zero-setting, Data hold, Data output, Preset, inch/mm conversion (inch/mm models)
• Alarm: Low voltage, Counting value composition error
