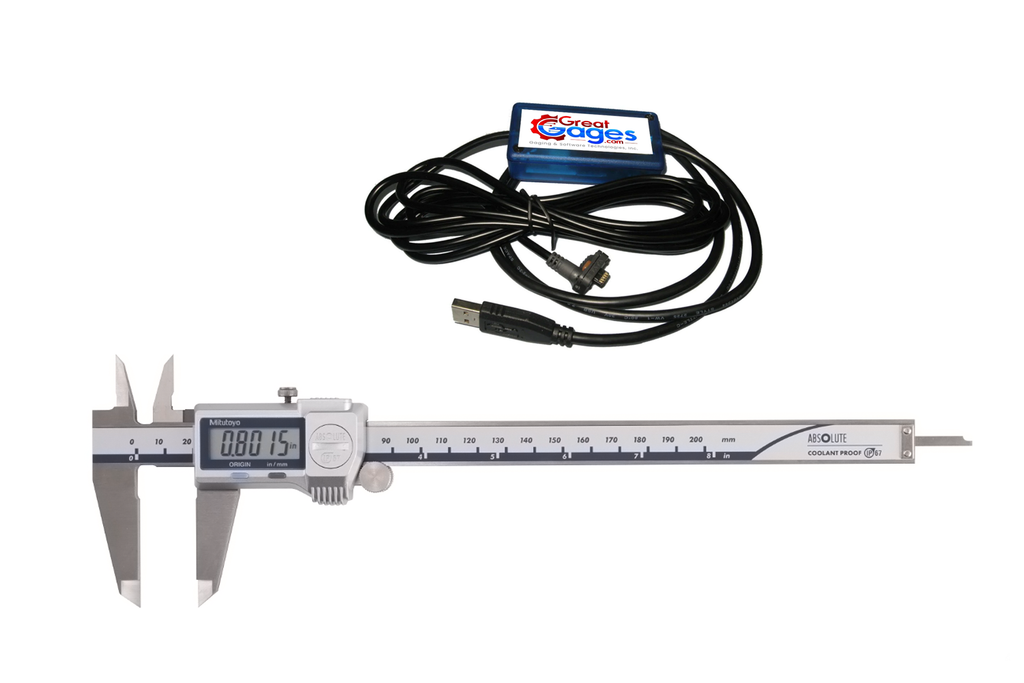

Mitutoyo Coolant Proof Caliper to USB Direct Package This complete package provides all of the items required to be able to measure your products with a Mitutoyo 0-8" Digital Coolant Proof Caliper, and then send the measured data to a PC through a USB port. The incoming data is converted to a keyboard style entry, so wherever you can type in data is where your incoming data will be placed. Works great with MS Word, Excel..., even SPC software packages. Complete package includes the following... Mitutoyo Digital Caliper w/SPC Output 0-8" / 200mm Measuring Range 0.0005" / 0.01mm Resolution USB Direct Interface Cable Readings can be triggered by any of the following: Pressing the push button on the USB Direct Cable Depressing a connected footswitch (not included) Pressing the data send button on the gage connector Simple to use!This USB Direct Cable is easily configured to output data in different modes, such as TAB, CR, up, down, left, right and continuous reading. The output mode is selected by adjusting the rotary switch on the cable itself. To access the rotary switch, simply remove the top cover by loosening two Phillips screws. A detailed operation manual is included with each cable.Six foot overall cable length. Special lengths readily available on request. Lifetime Warranty against manufacturing defects!
