500-769-10 Mitutoyo Coolant Proof Caliper 6"

Mitutoyo

500-769-20 Mitutoyo Coolant Proof Caliper 6", w/ Depth Bar

$ 265.05 $ 279.00

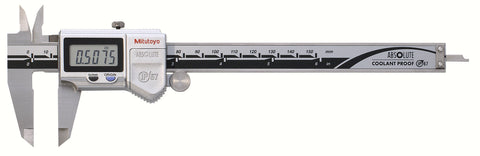

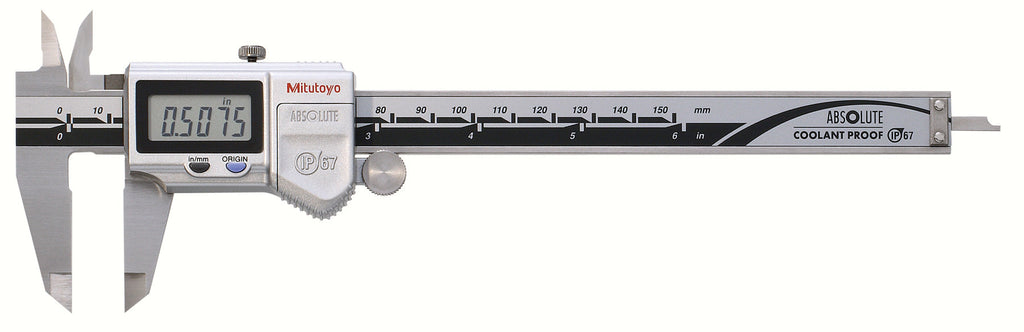

Mitutoyo 0-6" Coolant Proof Caliper with SPC Output

ABSOLUTE Coolant Proof Caliper Series 500 with Dust/Water Protection Conforming to IP67

Specifications include...

  • 0-6" / 150mm Measuring Range
  • 0.0005" / 0.01mm Resolution
  • 0.0005" / 0.01mm Repeatability
  • 0.075" Round Depth Bar

Series 500 FEATURES:

  • Can be used in workshop conditions exposed to coolant, water, dust or oil.
  • Easy to use - no need to wipe or clean the scale.
  • Advanced design styling.
  • Incorporates absolute measurement system.
  • Automatic power-on/off.
  • Data output function.
  • With thumb roller.
  • Supplied in fitted plastic case.

Technical Data

  • Display: LCD
  • Length standard: ABSOLUTE electromagnetic induction linear encoder Max.
  • Response Speed: Unlimited
  • Battery: SR44 (1 pc./2 pcs*), 938882
  • Battery life: Approx. 3 years under normal use (1 year: over 300mm / 12" models)
  • Dust/Water protection level: IP66 or IP67 *0 - 300mm model
  • Function Origin-set,
  • Zero-setting,
  • Automatic power on/off,
  • Data output,
  • inch/mm conversion (inch/mm models)
  • Alarm: Low voltage,
  • Counting value composition error.
