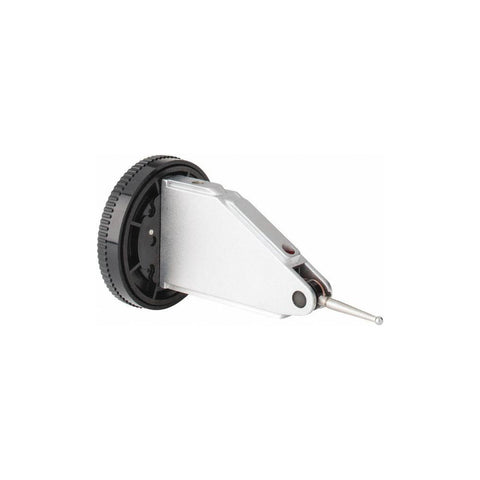

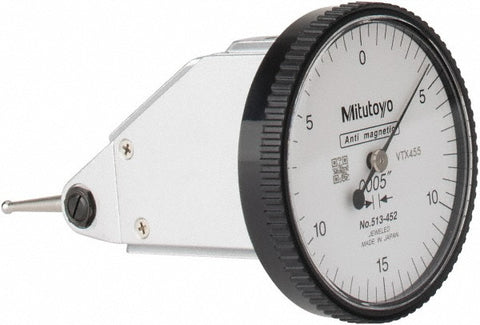

Mitutoyo Dial Test Vertical Indicator Set

A precision vertical dial test indicator from Mitutoyo’s Series 513 — ideal for measuring small deviations, alignment checks, and inspection tasks where conventional horizontal indicators can’t easily be used. Perfect for machinists, toolmakers, quality control techs, or anyone needing accurate measurements in narrow or recessed spaces.

Key Specifications:

• Measurement Range: 0.030 inch (±0.015″) for detecting subtle surface variations.
• Graduation: 0.0005″ — fine resolution for high-accuracy work.
• Dial Reading Pattern: 0-15-0 for intuitive measurement feedback.
• Accuracy: ±0.0005″ typical at full range.
• Measuring Force: ≤ 0.3 N to reduce deflection on delicate parts.
• Construction: Anti-magnetic body with jeweled bearings and precision gear train for smooth motion.
• Dial Features: Water/dust-resistant O-ring sealed, glare-free, scratch-resistant crystal.

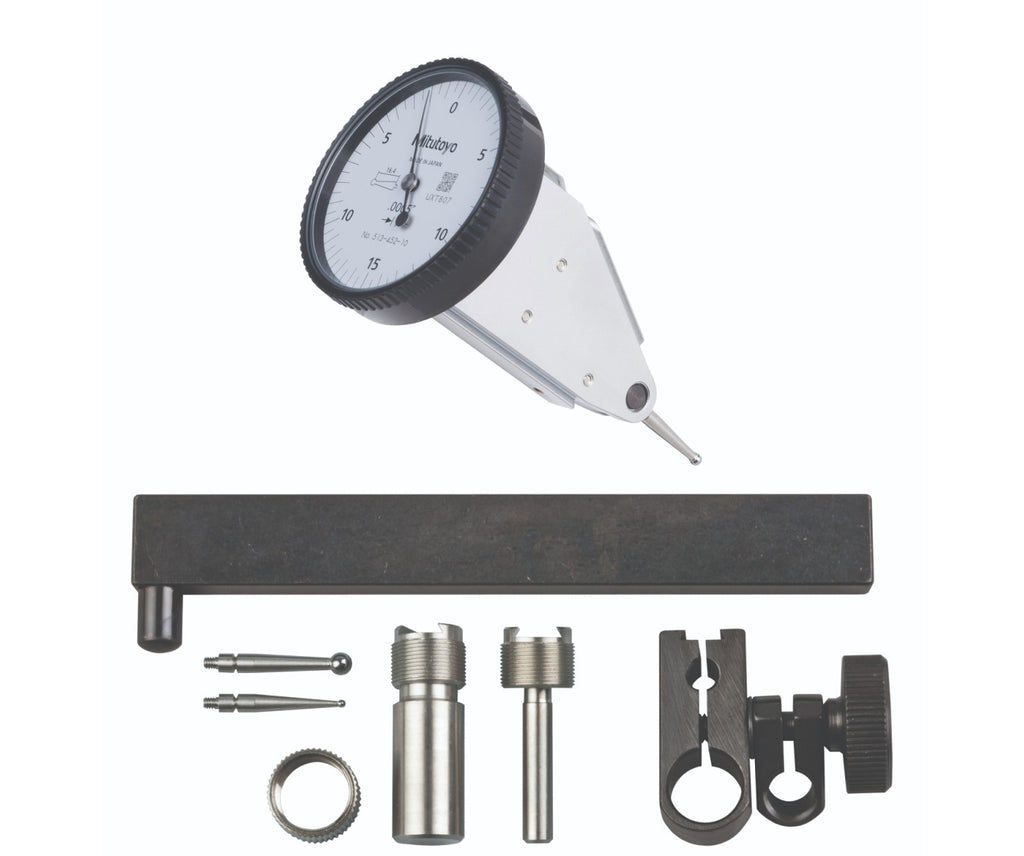

Kit includes...

• Test Indicator
• Swivel Clamp
• Holding Bar
• 3 Contact Points
• 2 Stems
