516-202-26 Mitutoyo Sq Ceramic Gage Block Set, 81pc Grade 0

516-202-26 Mitutoyo Sq Ceramic Gage Block Set, 81pc Grade 0

  • Save $ 330

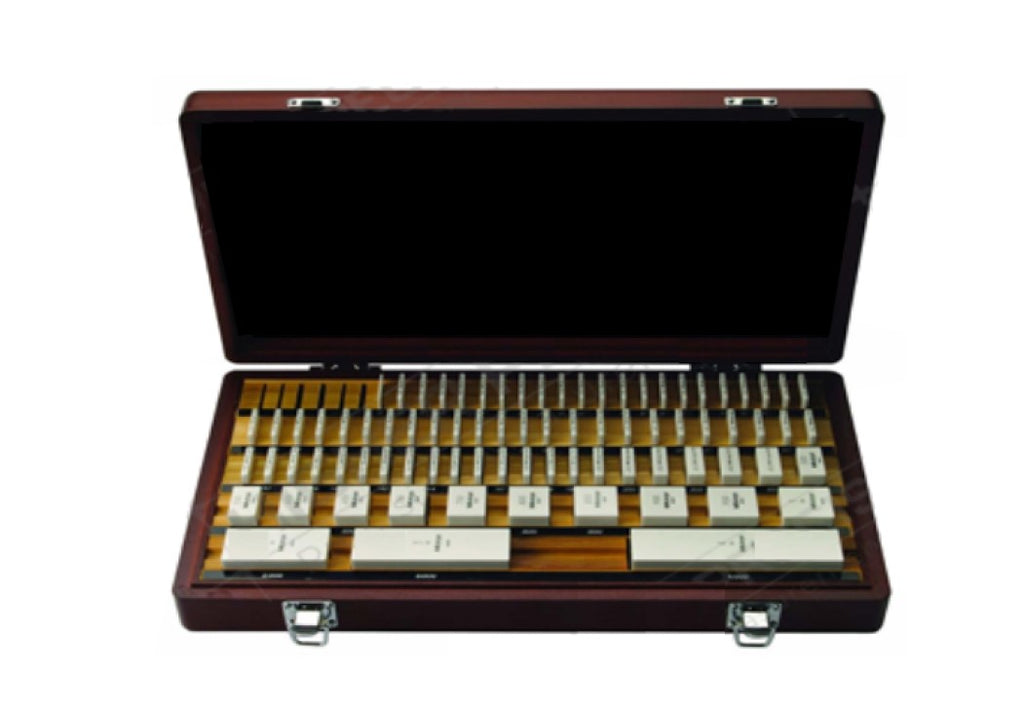

Mitutoyo Ceramic Square Gage Block Set (81 blocks per set)

BLOCKS INCLUDED IN SET:

  • 9 Blocks: .1001" - .1009" in .0001" increments
  • 49 Blocks: .101" - .149" in .001" increments
  • 19 Blocks: .05" - .95" in .05" increments
  • 4 Blocks: 1" - 4" in 1" increments
  • All Grade 0

Mitutoyo's Ceramic Gage Blocks offer a superior surface quality. Originally developed by Mitutoyo's ultra precision machining techniques to solve all of the problems that the steel gage block had.

Features include...

  • Corrosion-Resistant
    • Anti-corrosion treatment is not required when handled normally (i.e. with fingers), resulting in simple maintenance and storage.
  • No Burrs Caused by Dents, etc.
    • Since the CERA Block is very hard, it will not scratch and is highly resistant to burrs. If a burr is formed, it can easily be removed with a ceramic deburring stone (Ceraston).
  • Abrasion Resistant
    • CERA Blocks have 10 times the abrasion resistance of steel gage blocks.
  • Dimensional Stability
    • CERA Blocks are free from dimensional change over time.
  • Marking
    • The black characters, indicating the nominal length, are inscribed by laser and are clearly visible against the white surface of the block.
  • Anti-magnetic Nature Keeps Away Steel Powders
  • High wringing force
    • An even, dense tissue can maintain a strong wringing force.
  • Closest Expansion Coefficient to Steel
    • The thermal expansion coefficient of a CERA Block is quite similar to that of a steel gage block.
  • Highly Resistant Against Drops and Other Shocks.
    • The CERA Block material is one of the toughest ceramics materials. It is extremely difficult to crack under normal use.
