64PKA130C-CAL Mitutoyo QM-Height Gage 24

64PKA130C-CAL Mitutoyo QM-Height Gage 24" w/ Air Flotation, CAL Cert, Free Shipping

$ 5,985.00$ 5,157.05

Customer Reviews

Product Description

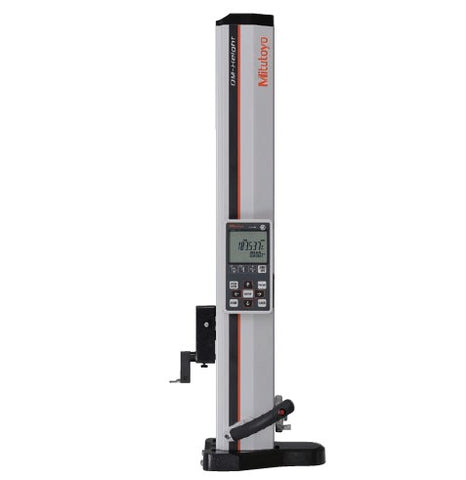

Mitutoyo's NEW QM-Height Gage with Air Flotation

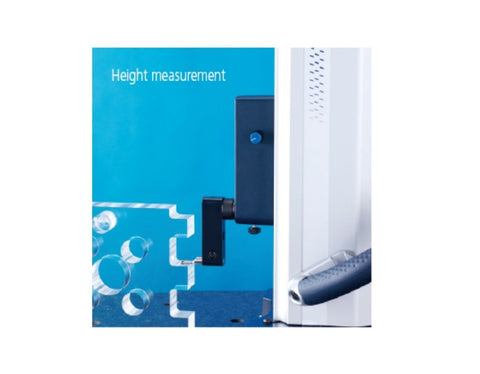

Extreme Best-In-Class accuracy, increased functionality and ease of use. The QM-Height delivers outstanding accuracy to satisfy your most critical measurement needs. It measures maximum / minimum and displacement from the surface or by increment. It also measures inside / outside diameter via a unique process (detect the circle apex and process by tracing measurement). Additionally, the QM-Height has a variety of Styli available to match your specific application.

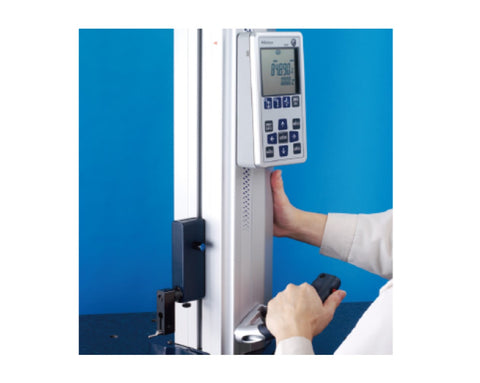

This model includes an Air Flotation System that allows for smooth movement along a surface plate.

  • Pressing a button on the grip activates the internal air pump.
  • The bases rises on a cushion of air and is able to be moved smoothly over a surface plate.

Features include...

  • 0-24" / 600mm Measuring Range
  • High Accuracy: + (2.4 + 2.1L / 600)um
  • A GO / NO GO Judgment Light (Red / Green / Orange)
  • Battery Life = approximately 1200 hours of use

Features include...

  • Newly developed high-accuracy and high-resolution ABSOLUTE linear encoder for position detection.
  • Easy reference icon keys.

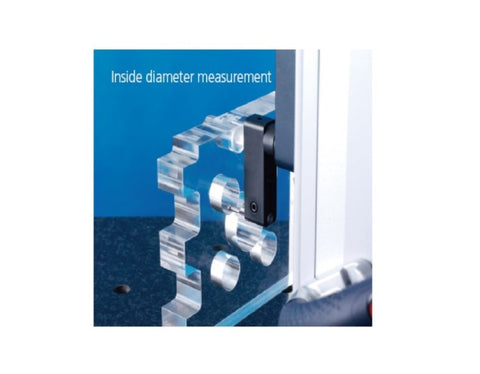

  • Possible to measure inside/outside diameter via unique process (detect the circle apex and process by tracing measurement).
  • Various types of optional probes are available.

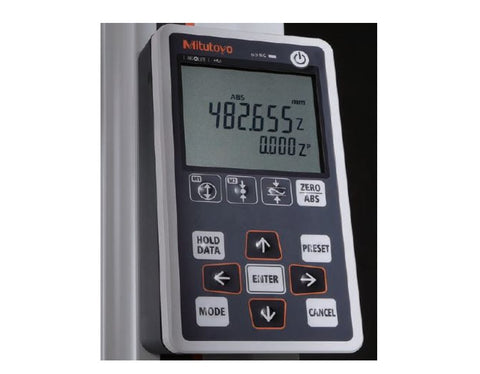

  • Large size LCD.
  • Go/no-go judgment is performed by setting the upper and lower tolerances. If a result is out of tolerance, the display changes from green to red, so tolerance judgment can be made at a glance.
  • Slider elevation knob (for travel) / wheel (for measurement).
  • With SPC and USB output.

Selectable Resolutions...

  • 0.00005", 0.0001"
  • 0.001mm, 0.0005mm

Includes AC Adapter

Free Ground Shipping - Continental US

Includes Certificate of Calibration traceable to NIST.

Mitutoyo now is offering their most popular gages with an ISO/IEC 17025 Accredited Certificate of Calibration that is traceable to NIST.

These calibrations are performed at Mitutoyo America's A2LA Accredited Calibration Laboratory in Aurora, Illinois.

The Open Date Put Into Service is to be filled out by the end user when the gage is first used.

The lead time on this gage is approximately 3 weeks to ship after receipt of order.
