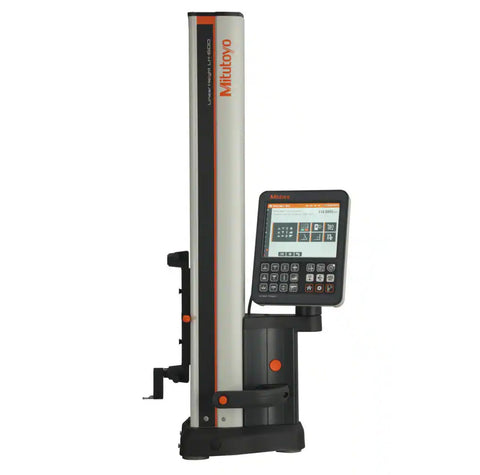

518-361-13 Mitutoyo Linear Height with Power Grip FREE Shipping Mitutoyo Linear Height Gage Mitutoyo

518-361-13 Mitutoyo Linear Height with Power Grip FREE Shipping

$ 10,900.00$ 10,355.00

Customer Reviews

Product Description


0-38" / 0-972mm Measuring Range

Includes FREE Continental US Ground Freight

Selectable Resolutions...

  • 0.000001" / 0.00001" / 0.0001" / 0.001"
  • 0.0001mm / 0.001mm / 0.01mm / 0.1mm

Offers advanced performance for reliable and easy 2D measurement.

World class accuracy & repeatability...

  • Achieved Accuracy: (1.1 + 0.6L/600) um
  • Perpendicularity (frontal) of 5um
  • Straightness of 4um

Features include...

  • Easy operation with a single touch of a key.
    • Each frequently-used measurement type is initiated by one dedicated icon-type command key. Even a novice can immediately start measurement without instruction.
  • Color TFT LCD
    • This has improved legibility and operability.
  • Unlimited USB Memory
    • Compatible models support more than 2 GB of USB memory.
  • High-accuracy air suspension assists measuring
    • The Linear Height can move without friction over a surface plate using an air bearing incorporated in the base, powered by the small built-in compressor. A semi-floating mode is also provided that allows measurement with the gage barely floating with no influence on the measuring accuracy. This mode is effective in operations such as scanning measurement of a hole or shaft on a large workpiece and displacement measurements performed while moving the gage. Additionally, the power grip model (518-352A-21 LH600EG) has improved
      handling operability

Mitutoyo Linear Height

Mitutoyo Linear Height

Power Grip

With the Power Grip, the operator is able to very easily control the movement of the Linear Height by activating the air bearings with the press of a thumb.

Package includes...

  • Main Unit with Power Grip
  • 5mm diameter eccentric probe
  • Probe diameter calibration block
  • Battery
  • AC adapter
  • Power cable
  • Clear cover
  • Conveying handle

Check Out Our Mitutoyo Linear Height Gage Video Below For More Info:
