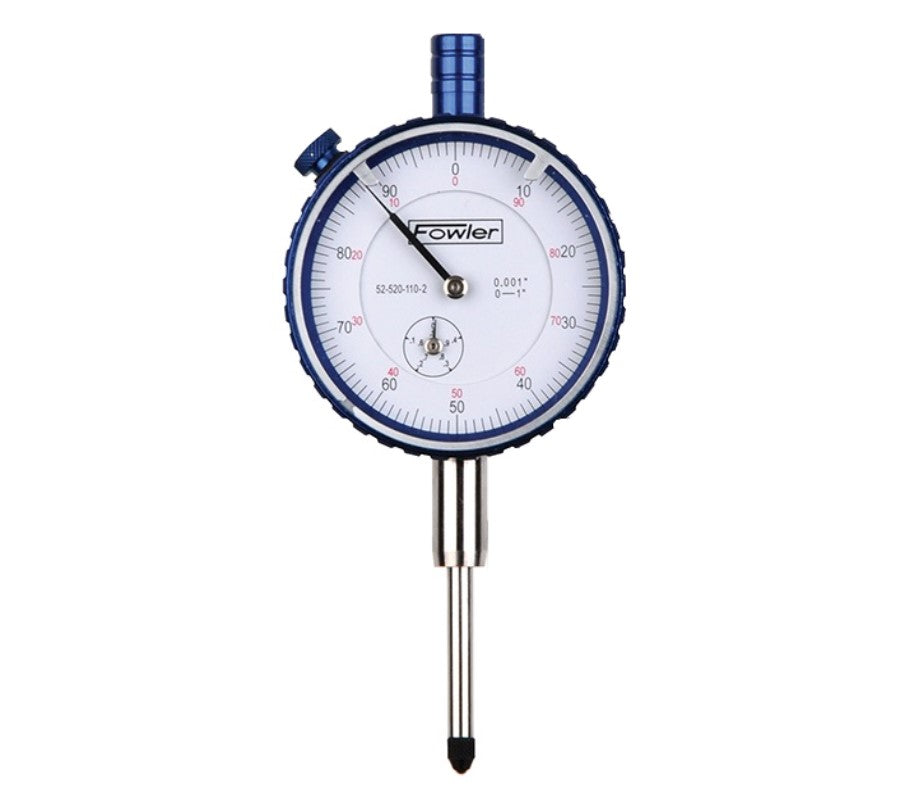

52-520-110-2 Fowler Dial Indicator 1

52-520-110-2 Fowler Dial Indicator 1" Range / .001" Grad, Cert

$ 100.53$ 76.00

Customer Reviews

Product Description

Fowler's 0-1" Dial Indicator with 0.001" Graduations

Specifications include...

  • 1" Travel
  • 0.001" Graduations
  • 0-100 Face Reading
  • 2.25" Dial Diameter
  • Revolution Counter
  • Lug Back
  • Carbide Point
  • White Face
  • Includes NIST Traceable Certificate of Calibration

Features include...

  • Revolution counter hand. Supplied with lug backs positioned through 90° increments.
  • Spindle rack & contact points of hardened stainless steel for long wear; cases forged brass, satin-chromed; gear wheels hard brass.
  • Pinions of silver steel, hardened tempered and burnished on pivots; lapped on teeth.
  • Microfine graduations in black for continuous readings and red for balanced readings.
    Available in metric graduations.
  • Movement mounted independently from case on rigid supporting plate, ensuring perfect and permanent alignment.
  • Extra long springs for uniform pressure through entire travel of spindle.
    Bezel knurled; easily adjusted thru 360å¡.
  • Meets AGD specifications. Group II & III gages measuring pressure approximately 2 oz. except .0001" (.002mm) which is 5 oz.
  • Includes adjustable tolerance limit markers.
