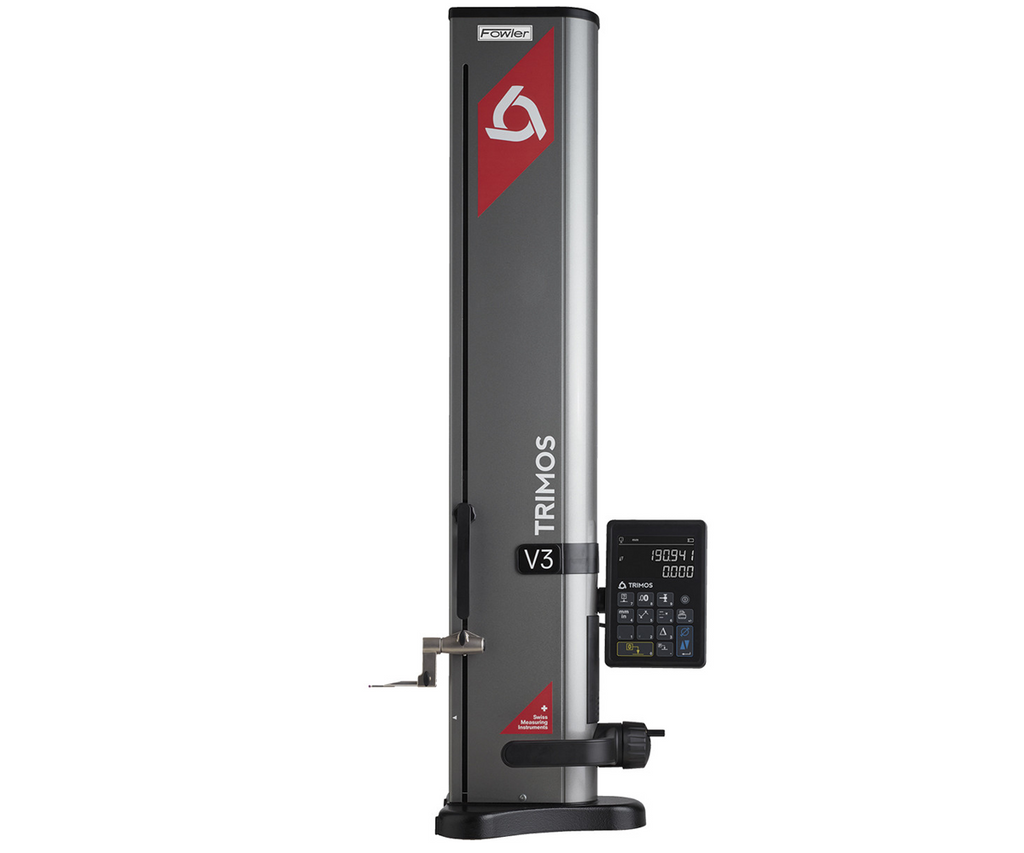

54-192-370 Fowler - Trimos V3 Electronic Height Gage 28

54-192-370 Fowler - Trimos V3 Electronic Height Gage 28"

$ 5,511.60$ 5,237.00

Customer Reviews

Product Description

The NEW Fowler-Trimos V3 vertical measuring instruments have been developed for the most difficult workshop environments. Manufactured in their entirety in Switzerland, they guarantee a robust, precise and reliable product in the long run.

Technical Data...

  • Measuring Range: 28" / 711mm
  • Range with Probe Inverted: 31.9" / 8128mm
  • Max. Permissible Errors: 0.00032" / 0.008mm
  • Repeatability (2s): 0.00008" / 0.002mm (Ì÷ 0.00016" / 0.004mm)
  • Frontal Squareness Deviation: 0.0006" / 0.015mm
  • Resolution: 0.00005" / 0.001mm
  • Measuring Force (N): 0.75 / 1.5
  • Measuring Insert with 4mm Ruby Ball
  • 8mm Probe Holder Elbow
  • Battery Life (Hrs): 40
  • Interfaces: USB / RS232
  • Air Cushion: NO

Features include...

  • Extremely easy to use

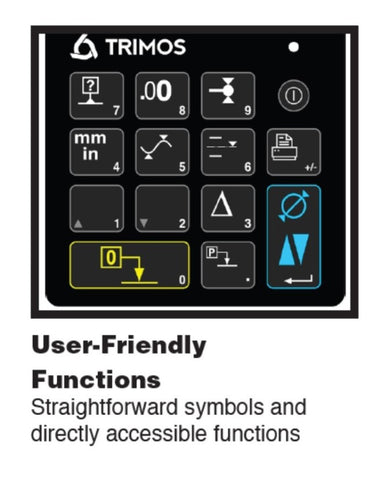

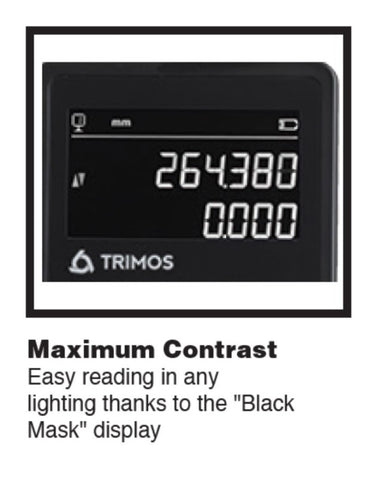

  • "Black mask" display with user friendly functions
  • Electronically adjustable measuring force

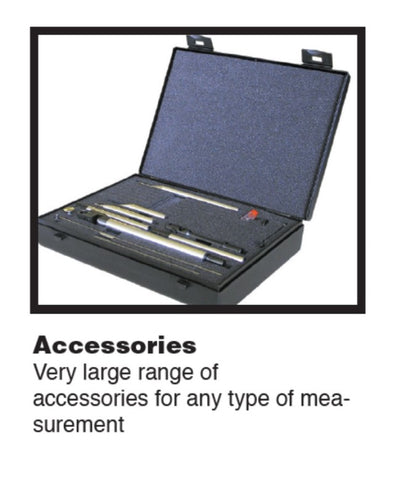

  • Vast range of accessories
  • All adjustments possible without tools
  • Cast iron base for optimal stability

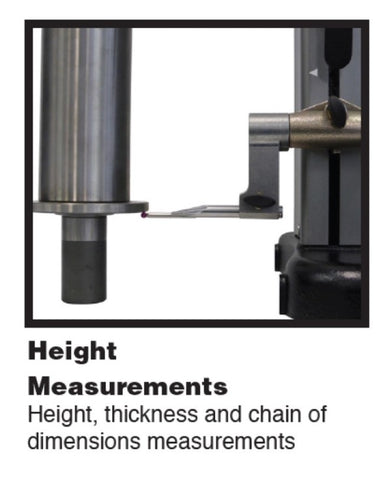

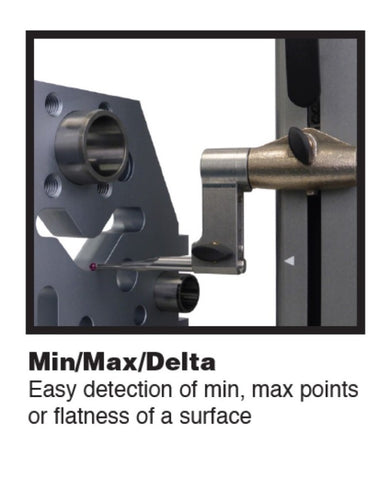

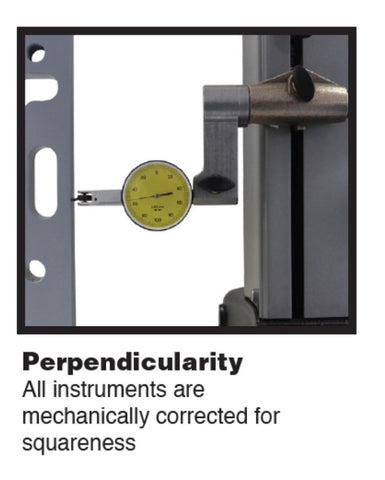

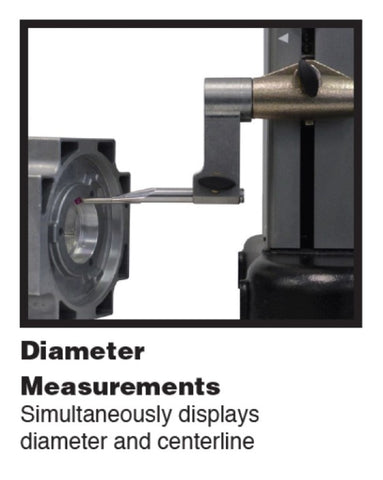

  • Measures heights, diameters, perpendicularity, centerlines, Min/Max/Delta

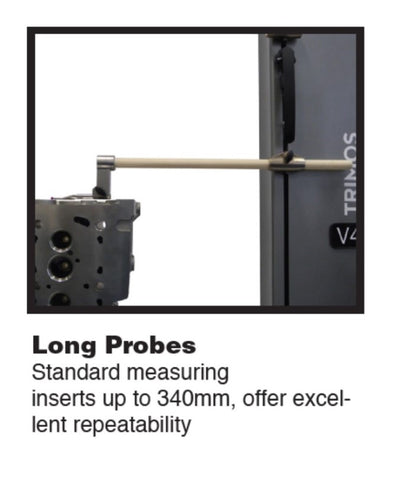

  • Accessory measuring probes up to 340mm in length available and provide excellent repeatability.
