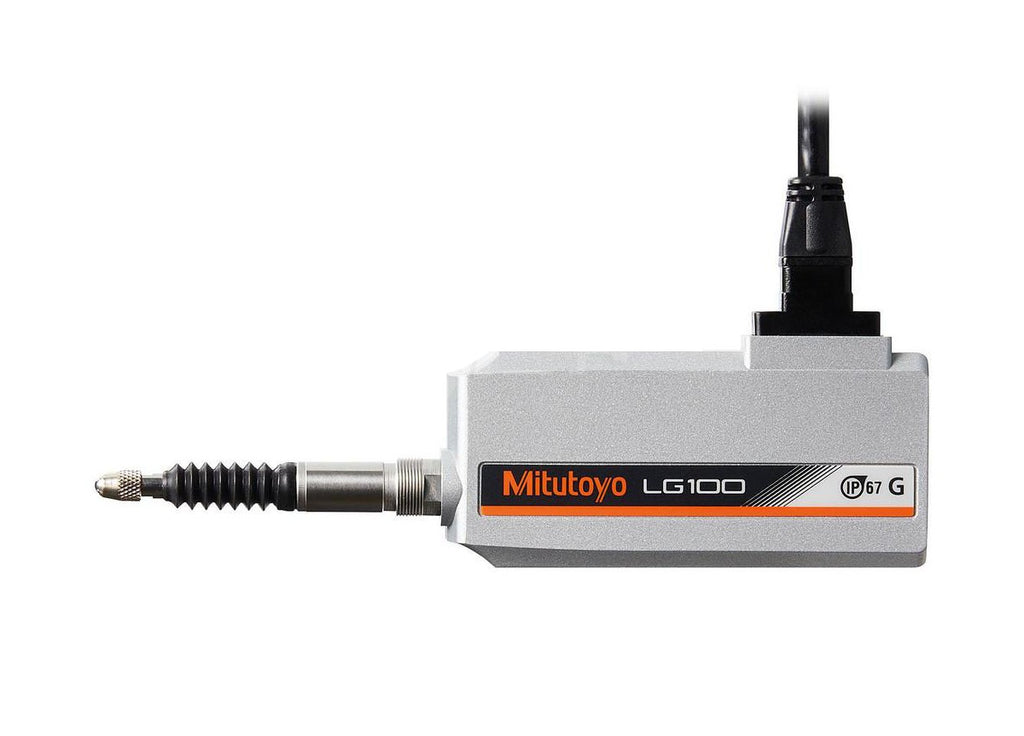

MITUTOYO'S LINEAR GAGE LG100-Series

High Accuracy

Precision and accuracy demanded by the automated assembly and inspection markets are guaranteed. Due to Mitutoyo's expertise as a manufacturer of measuring instruments, repeatability in the full measurement range (2σ) and narrow-range precision are also guaranteed.

Environment Resistance

Sliding durability of more than 50 million cycles*, with protection level of IP67G. A highly oil-resistant material is used in the rubber cap and cable sheath so it can be used in harsh environments.
* 10 mm range models (Actual value from in-house tests)

Reference Point Detection

Reference point signal output functions are featured throughout this series. When incorporating into a device, the master setting value is easy to set and is retained after shutdown.

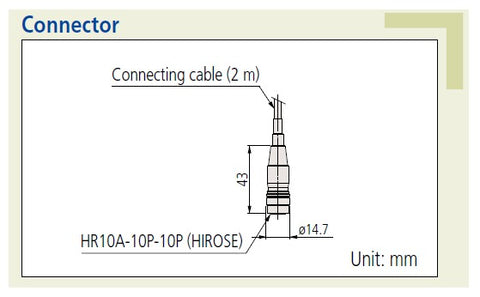

Includes 2m Connecting Cable Length.

Select Range / Resolution from Pulldown Menu

We recommend using this Linear Probe with Mitutoyo's EH-Counter Digital Display.

• EH-Counter Digital Display details: Click Here
