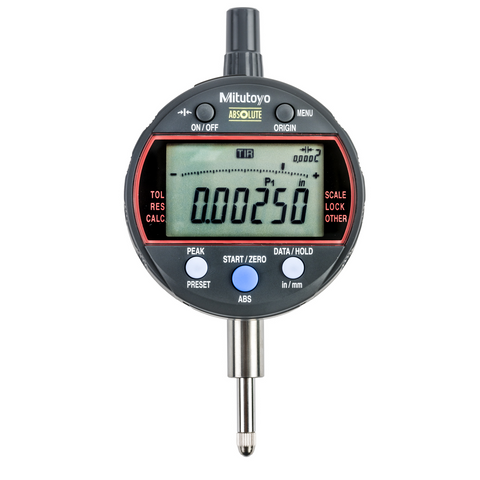

543-342B Mitutoyo CALC Indicator .5

543-342B Mitutoyo CALC Indicator .5" Flat Back

$ 504.00$ 478.80

Customer Reviews

Product Description

Mitutoyo Digimatic Indicator for Calculation Applications

Specifications include...

  • 0-.500" - 12.7mm Measuring Range
  • 0.00005" / 0.0001" / 0.0005" Resolution
  • 0.001mm / 0.01mm Resolution

Functions included...

  • Face Rotates 330°
  • Calculation function operates on spindle displacement.
  • Entering the appropriate formula factors for a fixture dedicated to the application enables direct measurement readout, thereby eliminating any need for the conversion tables previously needed for those applications where fixtures are typically used.
  • 3/8" Stem Diameter
  • MIN / MAX / TIR / GO - NO GO
  • Simple operation of many functions with 5 buttons and status icons.
  • Wide LCD and new analog bar graph are now standard on all models
  • Performs sampling 50 times per second, allowing to detect peak value more correctly
  • With Flat Back

Mitutoyo IDC CALC Type Digital Indicators Product brochure on Mitutoyo CALC Type Indicators: Click Here
