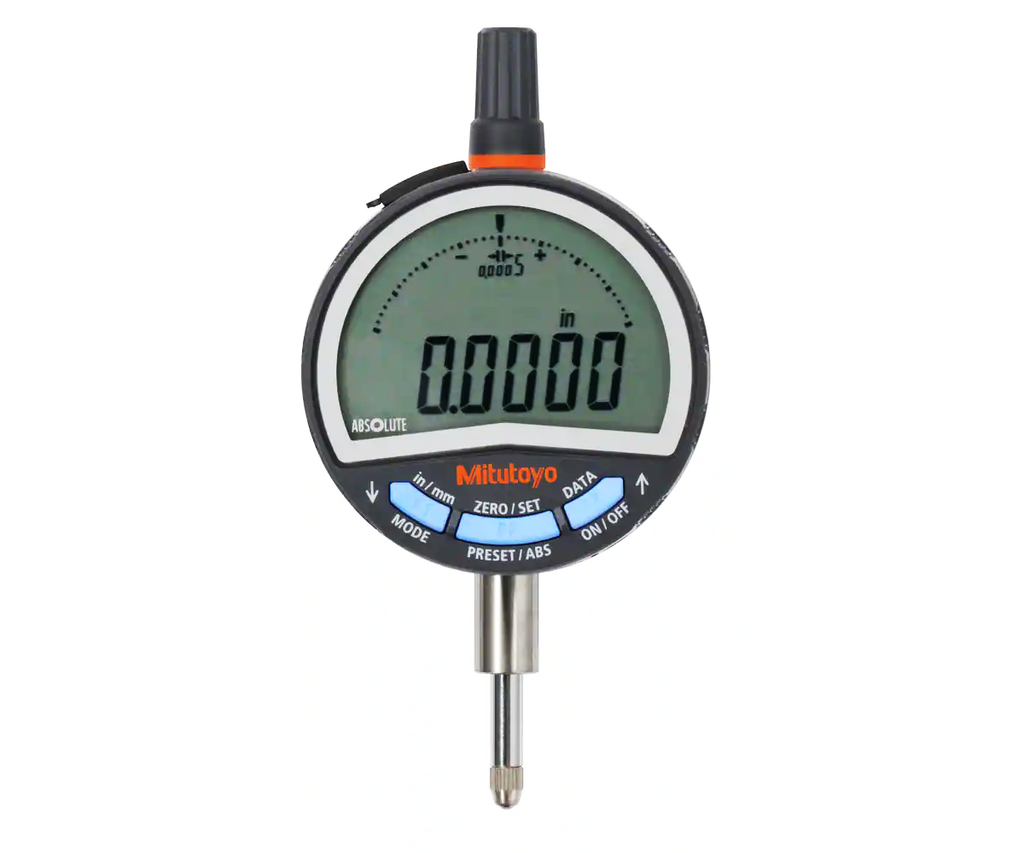

543-406 Mitutoyo Digimatic Indicator .5" Range - .0005" Res
Mitutoyo’s ID-C Series is their standard digital indicator line. A large LCD display is incorporated into the gage making for improved visibility, and rotates 330 degrees, allowing for use at a position where the measurement value can always be easily read. The three large, easy to press buttons are used in design to make operations easier to perform.
- 0-.5" / 12.7mm Measuring Range
- .0005"/0.01mm Resolution
- +/- 0.0010” / 0.02mm Accuracy
- 0.5N or less Measuring Force
- LUG Back
- Face Rotates 330°
- Stem Diameter: .375"
- SPC Output
- Functions include: PRESET / ZERO-SET / DATA HOLD
