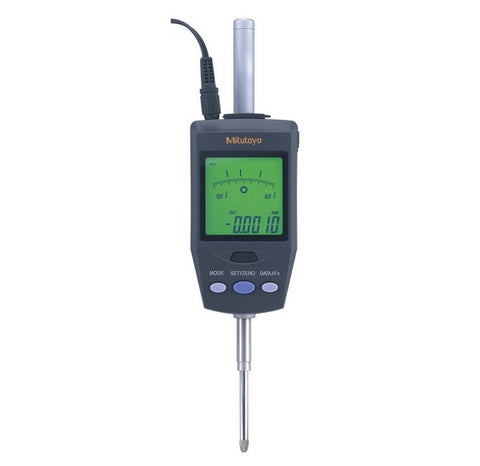

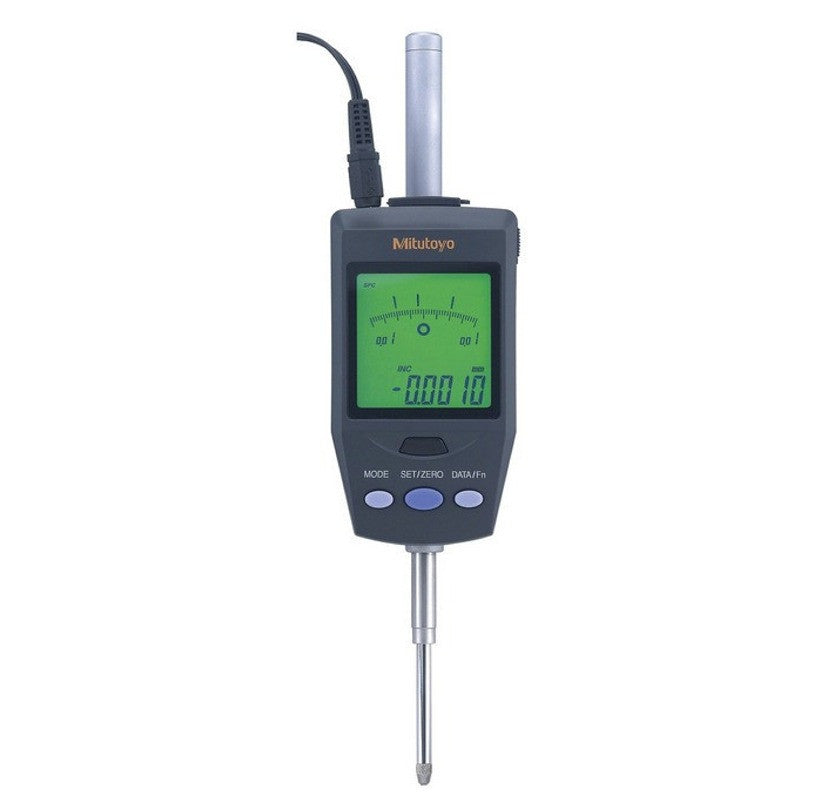

543-562A Mitutoyo Digital Indicator 1.2" Range - .00002" Res

Mitutoyo

543-562A Mitutoyo Digital Indicator 1.2" Range - .00002" Res

$ 759.95 $ 883.00


This new-generation digital indicator offers excellent accuracy and functionality expected from this class of indicator. Take advantage of its high accuracy backed up by 0.5um / 0.00002" resolution, remote control functionality via the optional handheld controller, and easy runout measurements with the analog bar display.

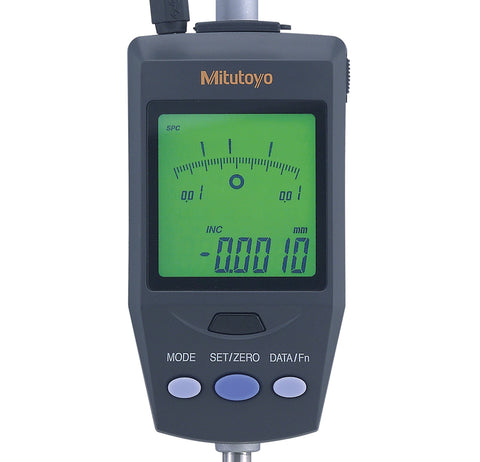

The ID-H indicator also offers a color changing display. If you set the upper and lower tolerances before performing measurements, a GO / NO GO judgment is displayed with a green background display when the value is in tolerance, red background display when the judgment is out of tolerance.

Features include...

  • 0-1.2" / 30.4mm Measuring Range
  • 0.0015mm Accuracy
  • Display Max, Min, or Runout Values
  • SPC Output

This gage also offer a selectable resolution...

  • 0.00002", 0.00005", 0.0001"
  • 0.0005mm, 0.001mm
