543-571 Narrow Digital Indicator .5" Range - .0005" Res

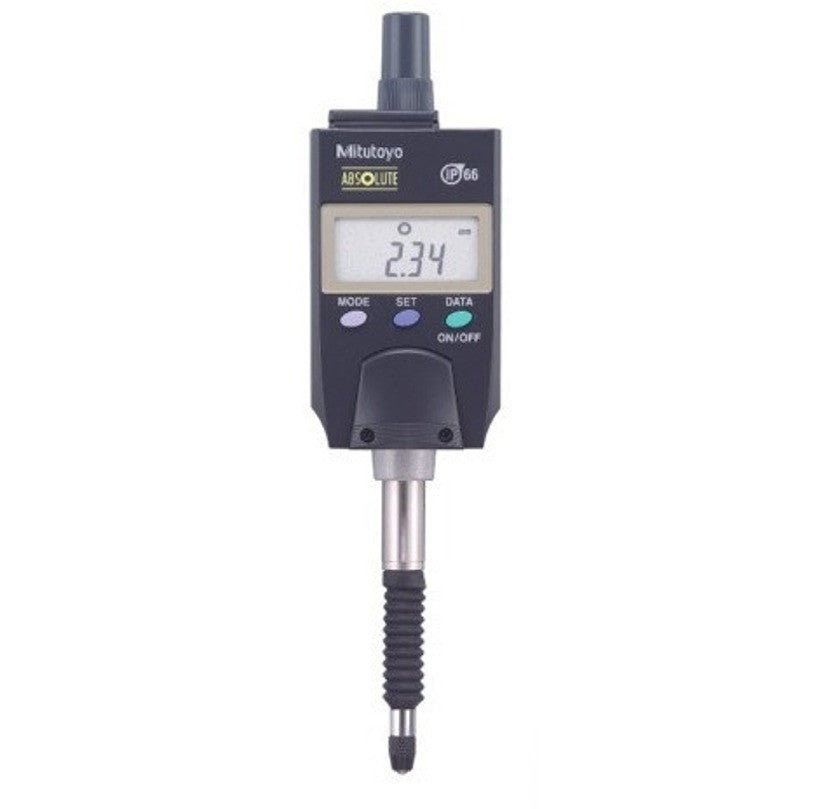

Mitutoyo Narrow Digital Indicator
- Measuring Range: 0.5" / 12.7mm
- Resolution: .0005" / .01mm
- Accuracy: .0008" / .02mm
- Absolute Encoder ensures all settings and readings maintained for the life of the battery (even when the power is turned off).
- IP-66 level of protection.
- Small 1.38 (35mm) width is an ideal advantage for multiple gage applications
- Multi direction measurements are possible by the reversible LCD display.
- Measurement fixtures for various applications can be constructed with the combination of ID-N and ID-B indicators.
For SPC output, order one of the following cables...
- 40" / 1m Length: 21EAA194
- 80" / 2m Length: 21EAA190
