543-576 Narrow Digital Indicator .5" Range - .00005" Res

Mitutoyo

543-576 Narrow Digital Indicator .5" Range - .00005" Res

$ 475.00 $ 500.00

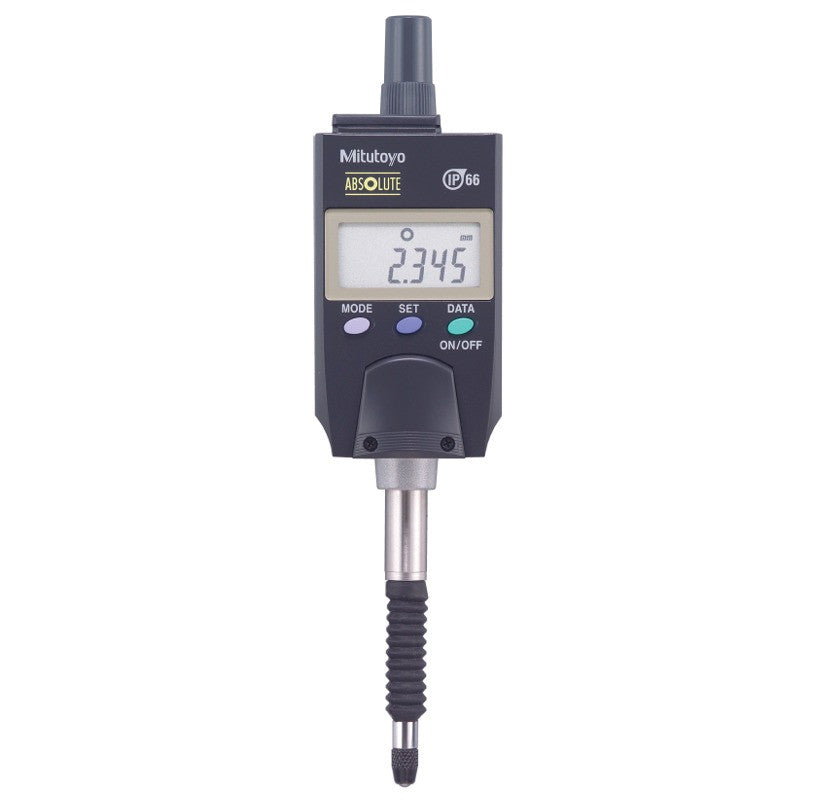

Mitutoyo Narrow Digital Indicator

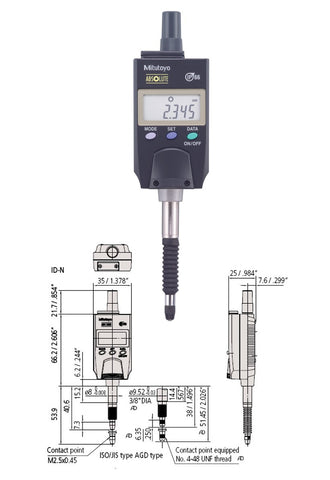

Specifications include...

  • Measuring Range: 0.5" / 12.7mm
  • Resolution: .00005" / .001mm
  • Accuracy: .00012" / .003mm

Features include...

  • Absolute Encoder ensures all settings and readings maintained for the life of the battery (even when the power is turned off).
  • IP-66 level of protection.
  • Small 1.38 (35mm) width is an ideal advantage for multiple gage applications
  • Multi direction measurements are possible by the reversible LCD display.
  • Measurement fixtures for various applications can be constructed with the combination of ID-N and ID-B indicators.

For SPC output, order one of the following cables...


  •  Mitutoyo IDN Indicators Brochure... Click Here
