543-586 Back Plunger Indicator .2" Range - .00005" Res

Mitutoyo

543-586 Back Plunger Indicator .2" Range - .00005" Res

$ 511.10 $ 538.00

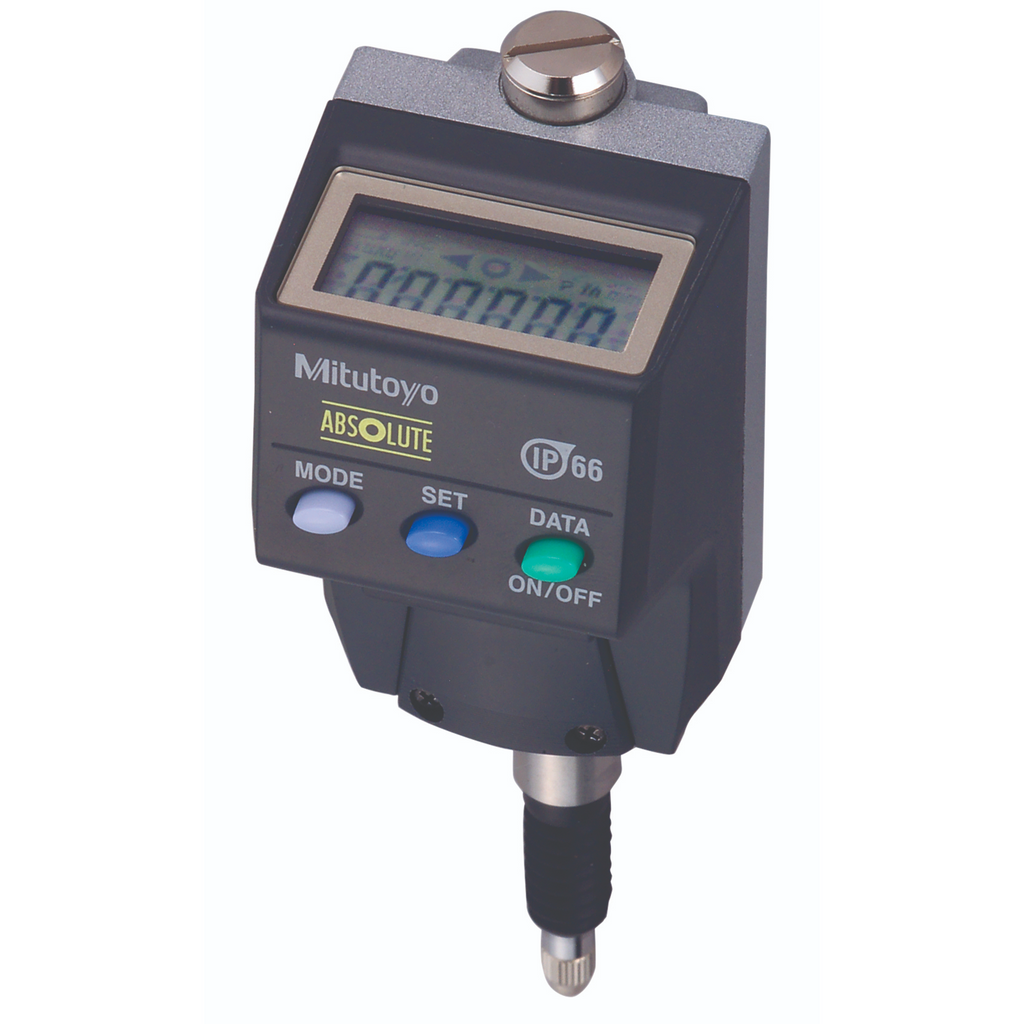

Mitutoyo 0-.2" Back Plunger Digital Indicator

Specifications include...

  • 0.2" / 5.08mm Measuring Range
  • Resolution: .00005" / .001mm
  • Accuracy: .00012" / .003mm

Features include...

  • Absolute Encoder ensures all settings and readings maintained for the life of the battery (even when the power is turned off).
  • IP-66 level of protection.
  • Small 1.38 (35mm) width is an ideal advantage for multiple gage applications
  • 4.586" Overall Length
  • Multi direction measurements are possible by the reversible LCD display.
  • Measurement fixtures for various applications can be constructed with the combination of ID-N and ID-B indicators.

For SPC output, order one of the following cables...

 Mitutoyo IDN Indicators Brochure... Click Here
