543-702B-CAL Mitutoyo Digimatic Indicator .5

543-701B Mitutoyo Digital Indicator .5" Range - .00002" Res, Flat Back

$ 501.00$ 457.90

Customer Reviews

Product Description

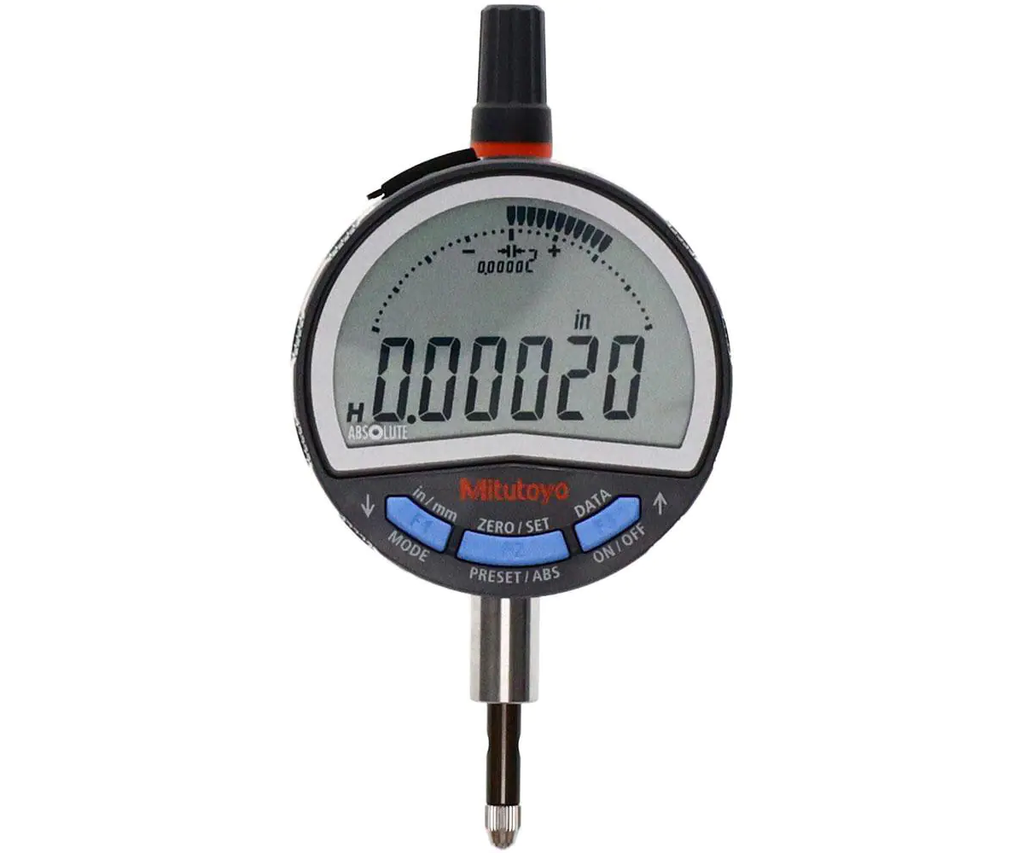

Mitutoyo's NEW ID-C Series is their standard digital indicator line. A large LCD display is incorporated into the gage making for improved visibility, and rotates 330?ø, allowing for use at a position where the measurement value can always be easily read.

Included are three large, easy to press buttons that you can freely set to ANY frequently used functions.

Also included in this new model is an analog bar that makes it convenient for observing subtle movements such as the approach to tolerance.

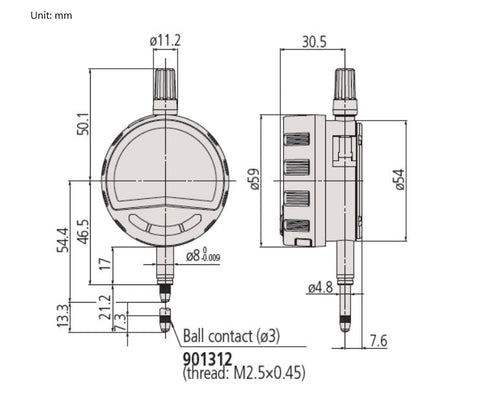

Specifications...

  • 0-.5" / 12.7mm Measuring Range
  • Selectable Resolutions...
    • 0.00002" / .00005" / .0001" / .0005"
    • 0.0005mm / 0.001mm / 0.01mm
  • + 0.00012" / 0.003mm Accuracy
  • 1.5N or less Measuring Force
  • FLAT Back
  • Face Rotates 330°
  • Stem Diameter: 8mm
  • Contact Point: M2.5 Thread
  • SPC Output
  • Battery Operated
  • Functions include...
    • MIN, MAX, TIR
    • Preset / Zero-Set
    • Direction Switching
