543-702B-IP2 Mitutoyo Indicator to USB Package .5

543-702B-IP2 Mitutoyo Indicator to USB Package .5" Range, 0.00005" Res

$ 751.65$ 714.07

Customer Reviews

Product Description

Mitutoyo Indicator to USB Package

This package provides all of the items required to be able to measure your products with a Mitutoyo 0-.5" Digital Indicator, and then send the measured data to a PC through a USB port.

Mitutoyo's NEW ID-C Series is their standard digital indicator line. A large LCD display is incorporated into the gage making for improved visibility, and rotates 330°, allowing for use at a position where the measurement value can always be easily read.

Included are three large, easy to press buttons that you can freely set to ANY frequently used functions.

Also included in this new model is an analog bar that makes it convenient for observing subtle movements such as the approach to tolerance.

The incoming data can be converted to a keyboard style entry, so wherever you can type in data is where your incoming data will be placed.

Works great with MS Word, Excel..., even SPC software packages.

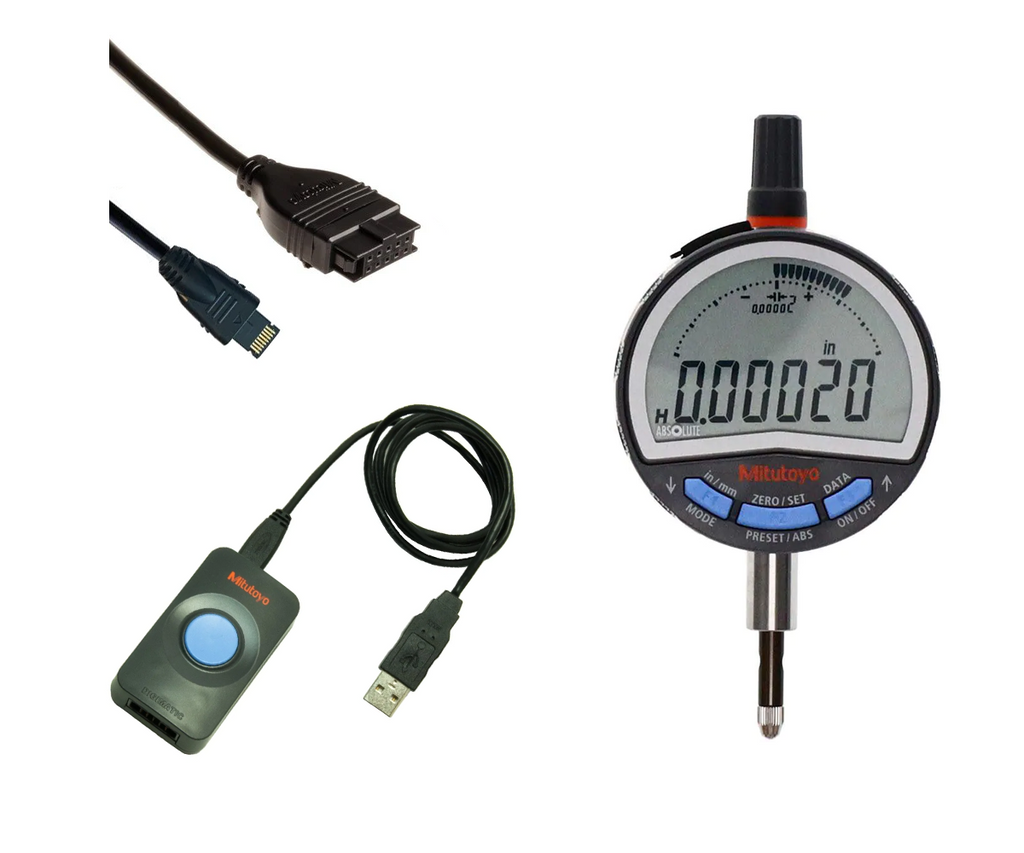

Complete package includes the following...

  • Mitutoyo 0-.5" Digital Indicator w/SPC Output
  • Mitutoyo USB Data Input Tool
  • 2m SPC Cable

Indicator Specifications...

  • 0-.5" / 12.7mm Measuring Range
  • Selectable Resolutions...
    • 0.00002" / .00005" / .0001" / .0005"
    • 0.0005mm / 0.001mm / 0.01mm
  • + 0.00012" / 0.003mm Accuracy
  • 1.5N or less Measuring Force
  • Flat Back
  • Face Rotates 330°
  • Stem Diameter: 3/8"
  • Contact Point: 4-48 Thread
  • SPC Output
  • Battery Operated
  • Functions include...
    • MIN, MAX, TIR
    • Preset / Zero-Set
    • Direction Switching

Universal Footswitch. (Optional)

  • Used on floor as footswitch or on the tabletop as a palmswitch. With a cable about 4.5ft long.

Package can be ordered with or without a Universal Footswitch.
