543-732B Mitutoyo Digimatic Indicator 2

543-732B Mitutoyo Digimatic Indicator 2" Range - .00002" Res

$ 840.00$ 718.20

Customer Reviews

Product Description

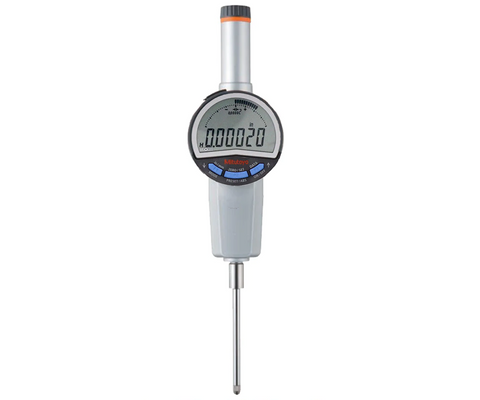

Mitutoyo ID-C Digimatic Indicator

Mitutoyo's NEW ID-C Series is their standard digital indicator line. A large LCD display is incorporated into the gage making for improved visibility, and rotates 330°, allowing for use at a position where the measurement value can always be easily read.

Included are three large, easy to press buttons that you can freely set to ANY frequently used functions.

Also included in this new model is an analog bar that makes it convenient for observing subtle movements such as the approach to tolerance.


  • 0-2" / 50.8mm Measuring Range
  • Selectable Resolutions...
    • 0.00002"/0.00005"/0.0001"/0.0005"
    • 0.0005mm/0.001mm/0.01mm
  • + 0.00020" / 0.005mm Accuracy
  • 2.3N or less Measuring Force
  • Flat Back
  • Face Rotates 330°
  • Stem Diameter: .375"
  • SPC Output
  • Functions include...
    • MIN, MAX, TIR
    • Preset / Zero-Set
    • Direction Switching
