543-737B-MC Mitutoyo Digital Indicator to PC Mobile Collect Wireless Package 2

543-737B-MC Mitutoyo Digital Indicator to PC Mobile Collect Wireless Package 2" Measuring Range, .0005" Resolution

$ 1,497.00$ 1,422.15

Customer Reviews

Product Description

Mitutoyo Digital Indicator to PC MobileCollect Wireless Package

This complete package provides all of the items required to be able to measure your products with a Mitutoyo 0-2" Digital Indicator, and then send the measured data to a PC via MicroRidge's wireless gage interface system, Mobile Collect.

Mitutoyo’s NEW ID-C Series is their standard digital indicator line. A large LCD display is incorporated into the gage making for improved visibility, and rotates 330°, allowing for use at a position where the measurement value can always be easily read.

Included are three large, easy to press buttons that you can freely set to ANY frequently used functions.

Also included in this new model is an analog bar that makes it convenient for observing subtle movements such as the approach to tolerance.


The incoming data can be converted to a keyboard style entry, so wherever you can type in data is where your incoming data will be placed.

Works great with MS Word, Excel..., even SPC software packages.

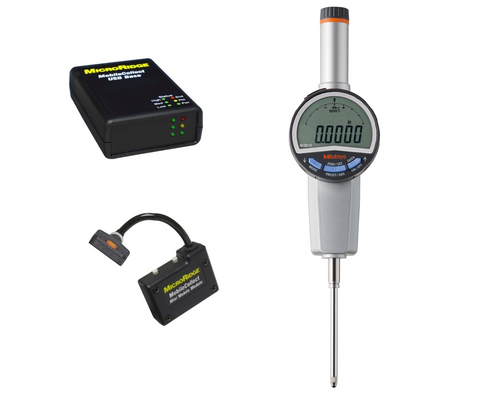

Complete package includes the following...

  • Mitutoyo Digital Indicator w/SPC Output
    • 0-2" / 50.8mm Measuring Range
    • .0005"/0.01mm Resolution
    • + 0.0015” / 0.04mm Accuracy
    • 2.3N or less Measuring Force
    • Face Rotates 330°
    • Stem Diameter: .375"
    • Flat Back
    • SPC Output
    • Battery Operated
    • Functions include...
      • MIN, MAX, TIR
      • Preset / Zero-Set
      • Direction Switching
  • Mobile Collect Interface Cable
  • Mobile Collect Transmitter
  • Mobile Collect Base (Receiver)
  • USB connecting cable
  • Mobile Collect programming software
