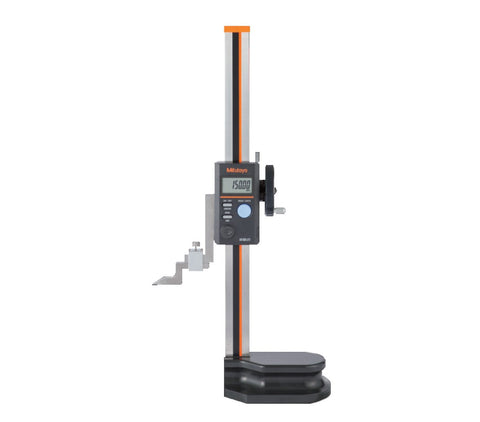

570-414 Mitutoyo Digital Height Gage 24"
Mitutoyo's NEW 0-24" Digimatic Height Gage
- New, large LCD Display improves the visibility of the readings.
- New, large Data Send Button.
- Built in ABSOLUTE linear encoder. This encoder eliminates the necessity of setting the reference point at every power-on. It has improved reliability because no over-speed error will occur.
- Rigid column structure ensures high measuring accuracy.
- With large smooth slider feed wheel.
- Carbide-tipped scriber is provided.
- With SPC data output.
- Measuring Range: 0-24" / 450mm
- Resolution: .0005" / 0.01mm
- Max error: + 0.0020" / +0.05mm
- Display: LCD 6-digit
- Length standard: ABSOLUTE electrostatic capacitance type linear encoder
- Max. response speed: Unlimited
- Battery: SR44 (1 pc.), 938882
- Battery life: Approx. 20,000 hours under normal use
- Origin setting, ABS/INC switching,
- Power ON/OFF, Data hold, Data output, inch/mm conversion (inch/mm models)
- Alarm: Low voltage, Counting value composition error
Supports smart data collection and management.
Links with U-Wave
Mitutoyo has made it even easier to set up the U-Wave wireless data communication system, which makes measurement data entry easier and more reliable.
The new design makes installation easier and faster, with a provided space on the back of the display to attach a transmitter with double-sided tape.
