Sale Off
570-414-USB Mitutoyo Digital Height Gage 24

570-414-USB Mitutoyo Digital Height Gage 24" to USB Direct Package

$ 1,566.00$ 1,487.70

Customer Reviews

Product Description

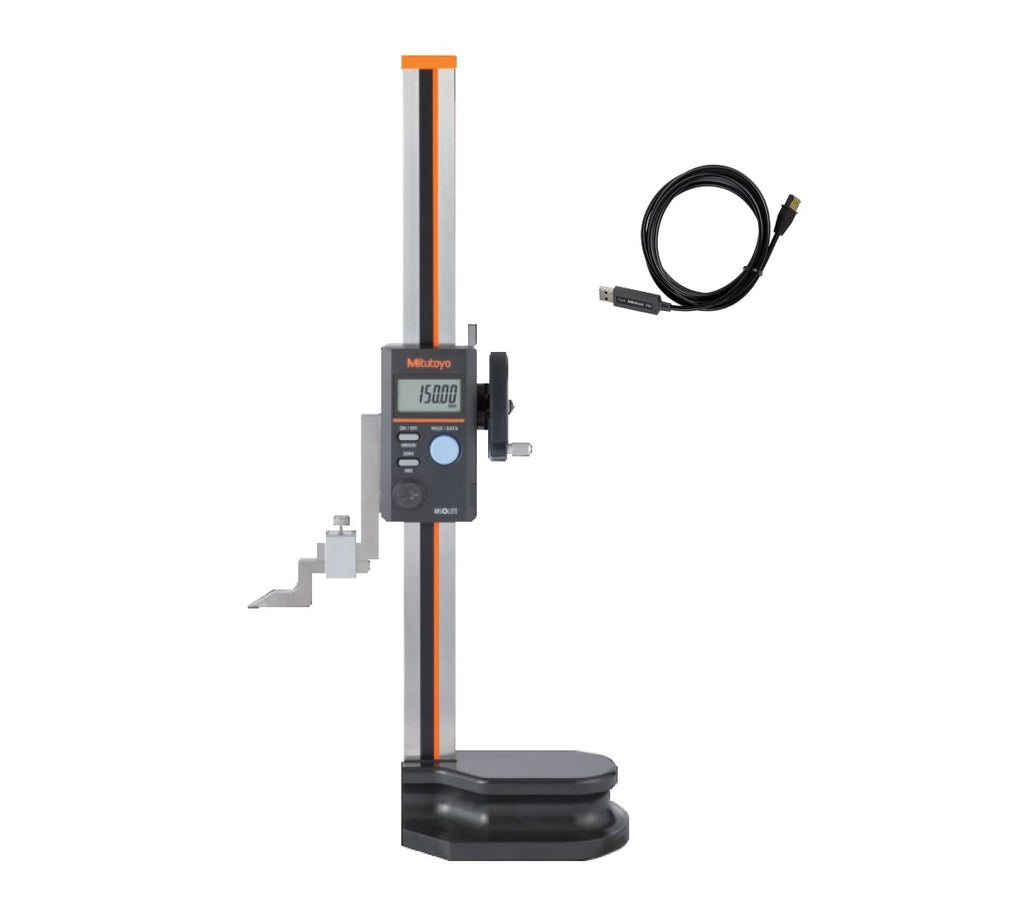

Mitutoyo's NEW 0-24" Digimatic Height Gage to USB Direct Package

This package allows you to measure your products with the included Mitutoyo Digital Height Gage, and then be able to send that data to a PC or laptop through the included USB Direct Cable.

This is a plug and play USB Cable that is recognized by Windows as a keyboard, so as soon as you plug it in, you will be able to start sending data to ANY Windows-based software just like you were typing it in.

Features include...

  • New, large LCD Display improves the visibility of the readings.
  • New, large Data Send Button.
  • Built in ABSOLUTE linear encoder. This encoder eliminates the necessity of setting the reference point at every power-on. It has improved reliability because no over-speed error will occur.
  • Rigid column structure ensures high measuring accuracy.
  • With large smooth slider feed wheel.
  • Carbide-tipped scriber is provided.
  • With SPC data output.

Package includes...

  • Mitutoyo Digital height Gage
    • 0-24" / 600mm Measuring Range
    • 0.0005" / 0.01mm Resolution
  • Mitutoyo USB Direct Interface Cable

Technical Data...

  • Measuring Range: 0-24" / 450mm
  • Resolution: .0005" / 0.01mm
  • Max error: + 0.0020" / +0.05mm
  • Display: LCD 6-digit
  • Length standard: ABSOLUTE electrostatic capacitance type linear encoder
  • Max. response speed: Unlimited
  • Battery: SR44 (1 pc.), 938882
  • Battery life: Approx. 20,000 hours under normal use

Functions include...

  • Origin setting, ABS/INC switching,
  • Power ON/OFF, Data hold, Data output, inch/mm conversion (inch/mm models)
  • Alarm: Low voltage, Counting value composition error

Mitutoyo 570-412 Height Gage

Supports smart data collection and management.

Links with U-Wave

Mitutoyo has made it even easier to set up the U-Wave wireless data communication system, which makes measurement data entry easier and more reliable.

The new design makes installation easier and faster, with a provided space on the back of the display to attach a transmitter with double-sided tape.

Mitutoyo 570-Series Height Gage
