600-520-KB-USB Mitutoyo 500-Series Caliper to USB Direct Cable USB Direct Interface Cables US Made

600-520-KB-USB Mitutoyo 500-Series Caliper to USB Direct Cable

$ 219.00$ 209.00

Customer Reviews

Customer Reviews

Based on 1 review Write a review

Product Description

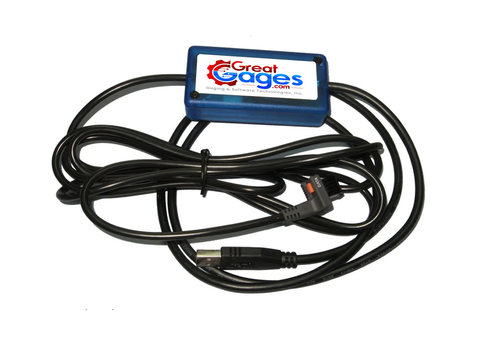

Mitutoyo 500-Series Caliper with Data Out Switch USB Direct Cable

Send data directly to Excel---No Software Wedge Required

Simplify your SPC data acquisition system with this full featured USB Direct Cable. Has many options for triggering data along with multiple data output modes. This USB Keyboard single gage interface cable connects a standard Mitutoyo 500-Series Caliper to a computer. Connects directly to the gage with a straight type connector, no additional cables required. Includes the standard data switch at the gage connection. Simple to install and use.

The output of this cable is a standard USB 2.0 keyboard signal. Connecting this cable with its built-in keyboard wedge to a computer will allow the cable to be identified as a keyboard device that can send data to any Microsoft Windows application - no software wedge required. This cable will make the gage readings appear as if they were typed in using a standard keyboard - eliminates data collection errors. If you want to collect data into a Microsoft Excel spreadsheet or Explorer base SPC programs, simply select the cell where you want the data to appear.

Readings can be triggered by any of the following:

  • Pressing the push button on the USB Direct Cable
  • Depressing a connected footswitch (not included)
  • Pressing the standard data out button on the Mitutoyo gage connection

This USB Direct Cable is easily configured to output data in different modes, such as CR, TAB, up, down, left, right continuous reading, continuous reading with automatic 10, 15, or 30 second delay between readings, and others. The output mode is selected by adjusting the rotary switch on the USB Direct Cable. To access the rotary switch, simply remove the top cover by loosening two Phillips screws. A detailed operation manual is included with each USB Direct Cable. Six foot standard cable length - special lengths available.

Applicable Mitutoyo Gages:

  • All 500 Series Digimatic Calipers with Absolute Encoder
  • Height Gage: 570-2XX
  • Depth Gage: 571-2XX
  • Scale Unit: 572-XXX
  • Digimatic Micrometer Heads Series 164


  • USB Direct Cable with data out switch for Mitutoyo gages
  • Sends data to Excel or other Explorer based SPC programs
  • Multiple data triggering options
  • Special cable lengths available on request
  • Lifetime warranty against manufacturing defects
