Mitutoyo DRO Lathe Package 12" x 40"

Manual machine retrofit packages with linear scales, mounting brackets, and Mitutoyo's KA Counter, which is a multi-feature, intuitive digital display.

Specifications include...

  • 12" X Travel
  • 40" Z Travel
  • IP67 Rated Scale on Z-Axis

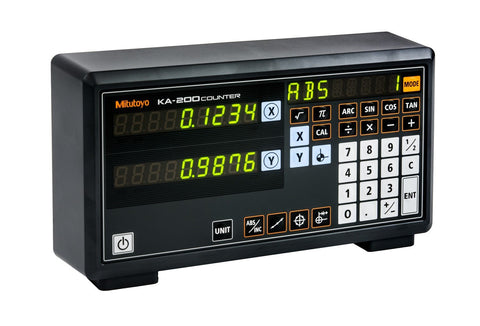

KA-200 Counter Display Features...

  • Absolute & Incremental modes
    • 10 presets each
  • Calculation functions
  • Non-linear and linear error compensation
  • Adjustable high-brightness, high-refresh rate LED displays
  • Scale test feature
  • Outputs data into spreadsheets
    • Optional USB Card
  • Selectable resolution down to 0.0001" or better

Mitutoyo AT116 Linear Scale Features...

  • Resolution Selectable: .001" - .000005" / .01 - .0001mm
  • Accuracy (20°C) : (5+5L0/1000)um
  • Output Signal: Two 90° phase-shifted sinusoidal signals
  • Max Response Speed: 50m/min
  • Signal Output Pitch: 20um
  • Scale Reference Point: Output in 50mm pitch
  • Protection Level: IP53
  • Operating Temperature: 0-45°C / 113°F

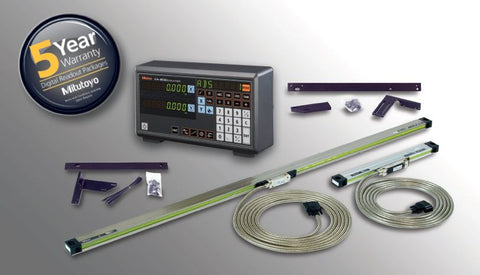

Package includes...

  • KA-200 Counter (2 or 3 axis)
  • Mounting Brackets
  • Counter Tray
  • Mitutoyo AT116 Linear Scales with Connecting Cables
    • 12" X-Axis
    • 40" Z-Axis
