64PKA062B Mitutoyo Digital Readout Mill Package 36

64PKA062B Mitutoyo Digital Readout Mill Package 36" x 16"

$ 1,710.00$ 1,624.50

Customer Reviews

Product Description

Mitutoyo DRO Mill Package 36" x 16"

Manual machine retrofit packages with linear scales, mounting brackets, and Mitutoyo's KA Counter, which is a multi-feature, intuitive digital display.

Specifications include...

  • 36" X Travel
  • 16" Y Travel
  • IP67 Rated Scales

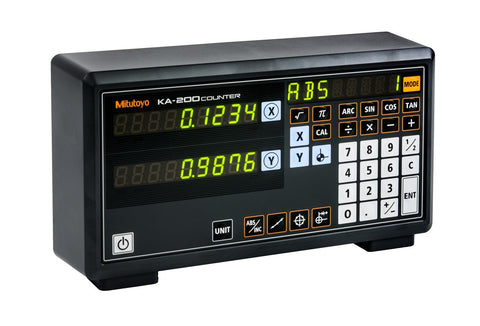

KA-200 Counter Display Features...

  • Absolute & Incremental modes
    • 10 presets each
  • Calculation functions
  • Non-linear and linear error compensation
  • Adjustable high-brightness, high-refresh rate LED displays
  • Scale test feature
  • Outputs data into spreadsheets
    • Optional USB Card
  • Selectable resolution down to 0.0001" or better

Mitutoyo AT715 Linear Scale Features...

  • Resolution Selectable: .001" - .000020" / .01 - .0005mm
  • Accuracy (20°C)...
    • 5um (L: 100 to 500mm) L: Effective Range (mm)
    • 7um (L: 600 to 1800mm) L: Effective Range (mm)
    • 10um (L: 2000 to 3000mm) L: Effective Range (mm)
  • Max Response Speed: 50m/min
  • Protection Level: IP67
  • Sliding Force: 5N or less
  • Operating Temperature: 0-45°C / 113°F

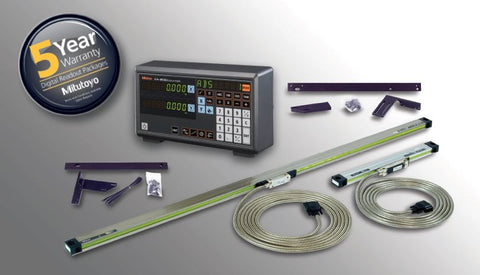

Package includes...

  • KA-200 Counter (2 or 3 axis)
  • Mounting Brackets
  • Counter Tray
  • Mitutoyo AT715 Linear Scales with Connecting Cables
    • 36" X-Axis
    • 16" Z-Axis

FREE GROUND SHIPPING

Now thru 12-15-2023 orders placed on this item will include Free Ground Shipping.
