64PKA064A Mitutoyo Digital Readout Mill Package 40

64PKA064A Mitutoyo Digital Readout Mill Package 40" x 18"

$ 1,710.00$ 1,510.00

Customer Reviews

Product Description

Mitutoyo DRO Mill Package 40" x 18"

Manual machine retrofit packages with linear scales, mounting brackets, and Mitutoyo's KA Counter, which is a multi-feature, intuitive digital display.

Specifications include...

  • 40" X Travel
  • 18" Y Travel
  • IP67 Rated Scales

KA-200 Counter Display Features...

  • Absolute & Incremental modes
    • 10 presets each
  • Calculation functions
  • Non-linear and linear error compensation
  • Adjustable high-brightness, high-refresh rate LED displays
  • Scale test feature
  • Outputs data into spreadsheets
    • Optional USB Card
  • Selectable resolution down to 0.0001" or better

Mitutoyo AT715 Linear Scale Features...

  • Resolution Selectable: .001" - .000020" / .01 - .0005mm
  • Accuracy (20°C)...
    • 5um (L: 100 to 500mm) L: Effective Range (mm)
    • 7um (L: 600 to 1800mm) L: Effective Range (mm)
    • 10um (L: 2000 to 3000mm) L: Effective Range (mm)
  • Max Response Speed: 50m/min
  • Protection Level: IP67
  • Sliding Force: 5N or less
  • Operating Temperature: 0-45°C / 113°F

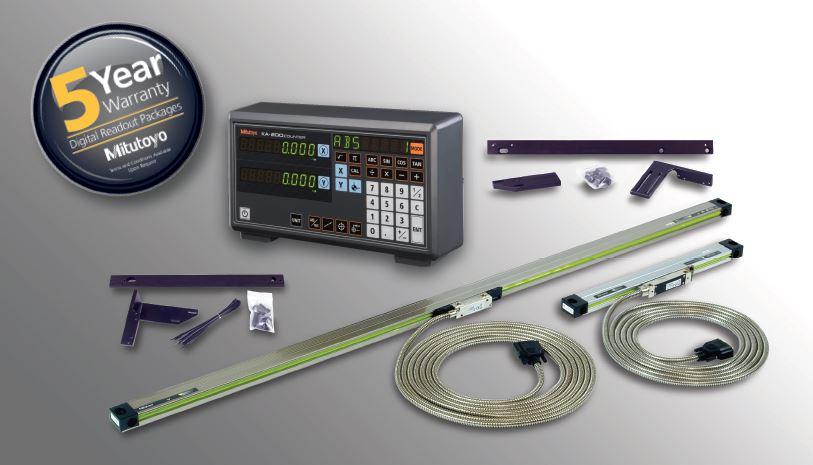

Package includes...

  • KA-200 Counter (2 or 3 axis)
  • Mounting Brackets
  • Counter Tray
  • Mitutoyo AT715 Linear Scales with Connecting Cables
    • 40" X-Axis
    • 18" Y-Axis
