6802-1 INSIZE V-Block Set 2.6" x 2.8"

6802-1 INSIZE V-Block Set 2.6" x 2.8"

  • $ 480.00

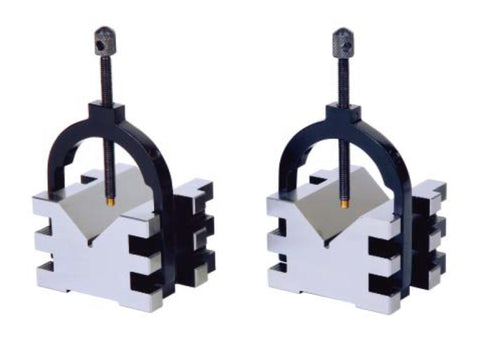

INSIZE V-Block Set

Sold as 2 Matching V-Blocks per Set, made of alloy steel, hardened to HRC60+2.

Hold cylindrical or rectangular workpieces for inspection and machining.

Specifications include...

  • Size: 2.6" x 2.8" x 2.0"
  • Cylindrical Holding Range: 0.20" - 1.97"
  • Rectangular Holding < 1.38"
  • Parallelism of V-Groove to top, bottom, left, right sides: 197µin
  • Squareness of V-Groove to top, bottom, left, right sides: 197µin
INSIZE V-Block Set
INSIZE V-Block Set Specs
