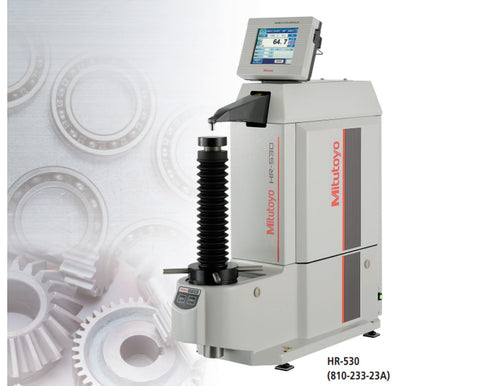

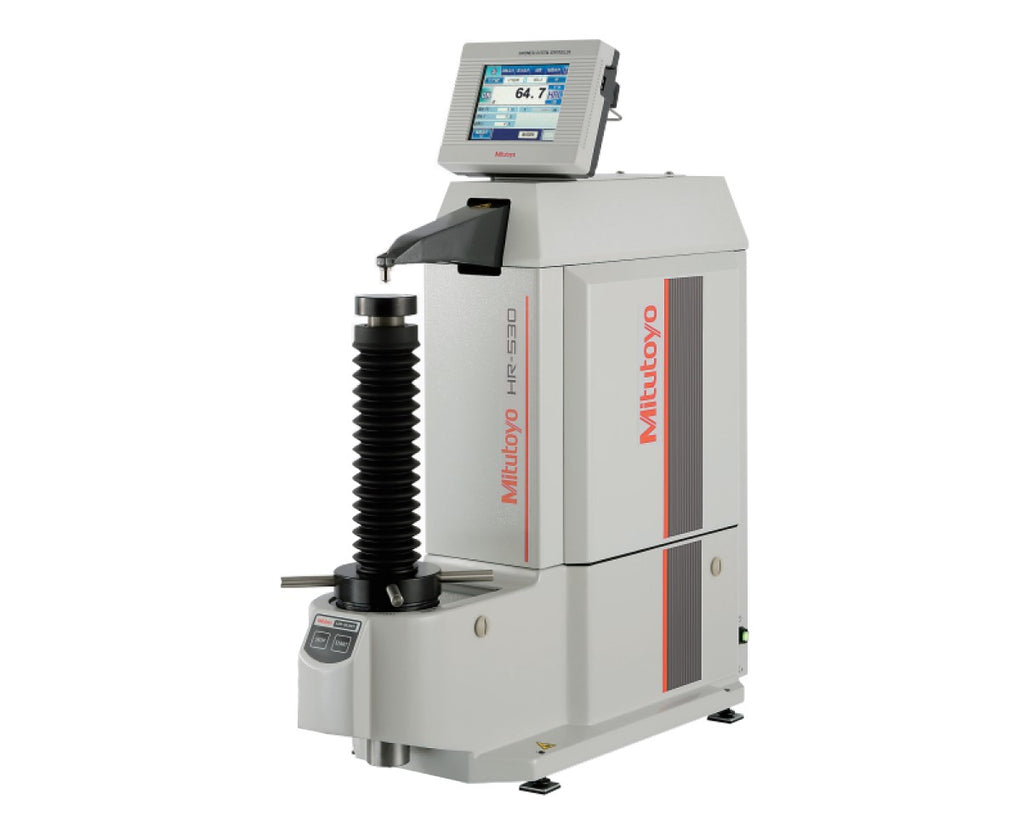

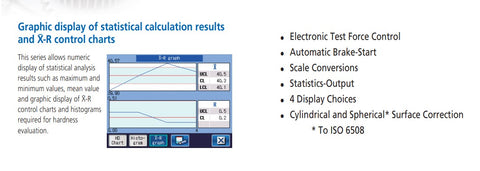

Mitutoyo Rockwell & Rockwell Superficial Type Hardness Tester The closed loop test force control on the Mitutoyo HR-530 Rockwell and Brinell Hardness Tester allows for a wide variety of hardness testing including plastics. The HR-530 is capable of testing the inside wall hardness of rings without cutting the ring into pieces. An easy to use brake-start system automatically begins testing when initial force is reached. The curved surface correction function enables curved surfaces, such as round bars and spheres, to be tested for hardness as easily as flat surfaces. Color touch screen control panel displays statistics and graphs; up to five display formats show needed information. Nose-type indenter enables measurement of a specimenƒ??s flat top surface as well as inside surface of cylindrical specimen. The HR-530 is available in 9.8ƒ?� (250mm) or 15.5ƒ?� (395mm) height capacity models. Complete with a combination diamond indenter, a 1/16ƒ?� carbide ball indenter, one flat and one V anvil, 2 HRC, 1 HRBW, 1 HR30TW and 1 HR30N test block. Hardness testing of plastics according to ASTM D785 (Procedure A and B) and ISO2039-2 are also possible. Technical Data... Preliminary test force: 29.42N, 98.07N Test force setting: By control unit Load control: Automatic (loading, duration, unloading) Load duration: 0s - 120s (1s increments) Max. specimen height: 9.8" / 250mm Max. specimen depth: 5.9" / 150mm Stage elevation: Manual or power drive Control unit: Sheet switch type or touch screen type Data output: RS-232C, Digimatic code (SPC) and USB 2.0 Power supply: 120V AC Dimensions (W x D x H)... Main unit: 9.84" x 26.38" x 23.82" Control unit: 7.52" x 5.79" x 2.80" Rockwell Test Force... 588.4N / 60kgf 980.7N / 100kgf 1471N / 150kgf ?ÿRockwell Superficial Test Force... 147.1N / 15kgf 294.2N / 30kgf 441.3N / 45kgf Package includes... Main unit with Diamond Indenter 1/16" Ball Indenter 1/16" Spare Ball Flat Anvil V-Anvil Display with Mounting Bracket Hardness Test Blocks 30-35HRC, 60-65HRC, 90-95HRC 64-69HR30N, 70-79HR30T Power cord, vinyl cover, users manual FREE Ground Freight to any Continental USA location. View a pdf brochure on this product... Click Here
