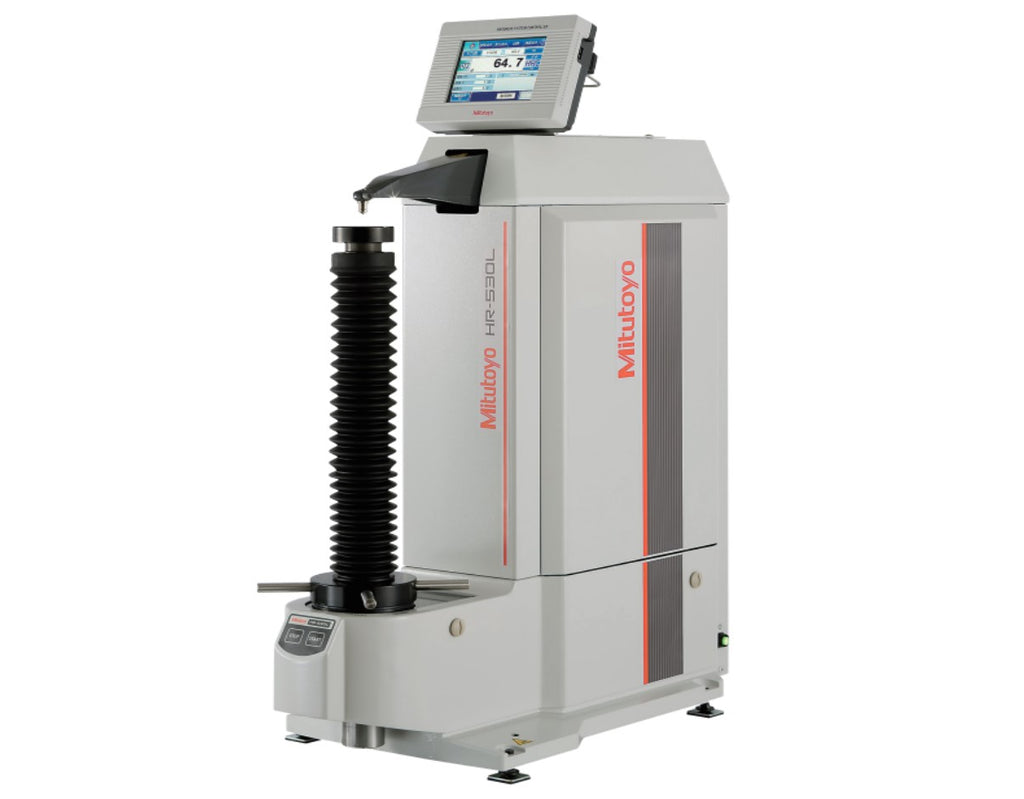

810-333-33A Mitutoyo Rockwell Hardness Tester HR-530L Hardness Testers Mitutoyo

810-333-33A Mitutoyo Rockwell Hardness Tester HR-530L

$ 20,000.00$ 17,100.00

Customer Reviews

Product Description

Mitutoyo Rockwell & Rockwell Superficial Type Hardness Tester

The closed loop test force control on the Mitutoyo HR-530 Rockwell and Brinell Hardness Tester allows for a wide variety of hardness testing including plastics. The HR-530 is capable of testing the inside wall hardness of rings without cutting the ring into pieces. An easy to use brake-start system automatically begins testing when initial force is reached.

  • The curved surface correction function enables curved surfaces, such as round bars and spheres, to be tested for hardness as easily as flat surfaces.

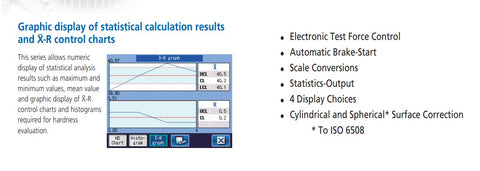

  • Color touch screen control panel displays statistics and graphs; up to five display formats show needed information.
  • Nose-type indenter enables measurement of a specimen's flat top surface as well as inside surface of cylindrical specimen.
  • The HR-530 is available in 9.8" (250mm) or 15.5" (395mm) height capacity models.
  • Complete with a combination diamond indenter, a 1/16" carbide ball indenter, one flat and one V anvil, 2 HRC, 1 HRBW, 1 HR30TW and 1 HR30N test block.
  • Hardness testing of plastics according to ASTM D785 (Procedure A and B) and ISO2039-2 are also possible.

Technical Data...

  • Preliminary test force: 29.42N, 98.07N
  • Test force setting: By control unit
  • Load control: Automatic (loading, duration, unloading)
  • Load duration: 0s - 120s (1s increments)
  • Max. specimen height: 15.5" / 395mm
  • Max. specimen depth: 5.9" / 150mm
  • Stage elevation: Manual or power drive
  • Control unit: Sheet switch type or touch screen type
  • Data output: RS-232C, Digimatic code (SPC) and USB 2.0
  • Power supply: 120V AC
  • Dimensions (W x D x H)...
    • Main unit: 11.6" x 26.2" x 30.1"
    • Control unit: 7.52" x 5.79" x 2.80"

Rockwell Test Force...

  • 588.4N / 60kgf
  • 980.7N / 100kgf
  • 1471N / 150kgf

Rockwell Superficial Test Force...

  • 147.1N / 15kgf
  • 294.2N / 30kgf
  • 441.3N / 45kgf

Package includes...

  • Main unit with Diamond Indenter
  • 1/16" Ball Indenter
  • 1/16" Spare Ball
  • Flat Anvil
  • V-Anvil
  • Display with Mounting Bracket
  • Hardness Test Blocks
    • 30-35HRC, 60-65HRC, 90-95HRC
    • 64-69HR30N, 70-79HR30T
  • Power cord, vinyl cover, users manual
