10 mp USB Color Camera for Microscopes Toolmakers Microscope Accessories vendor-unknown

10 mp USB Color Camera for Microscopes

$ 950.00$ 395.95

Customer Reviews

Customer Reviews

Based on 2 reviews Write a review

Product Description

10 Megapixel USB Color Digital Camera with Calibration Kit

This camera system is specially designed for microscopes, making it easy to capture still images as well as display live microscope images on your PC.

Works with Mitutoyo Toolmakers Microscopes!

Included in the package is software that allows you to preview images, record videos, capture still images, edit captured images, and save the images in a variety of different formats. The software also allows you to perform length, angle, area and other measurement functions.

Features include...

  • Sensor: Aptina MT9J001
  • Sensor Size: 1/2.3" (6.44mm(H) x 4.616mm(V))
  • Resolution: 3584 x 2748 (approx. 10,000,000 pixels)
  • Reduction Lens: 0.5X
  • Pixel Size: 1.67 x 1.67
  • Frame Rate: 38fps @872x654, 11fps @1744x1308, 3.3fps @3584x2748
  • Exposure: 0.4~2000ms, ROI Auto & Manual
  • Scan Mode: Progressive
  • Dynamic Range: 65.2dB
  • A/D Converter: 12-bit Parallel, 8-bit R.G.B to computer
  • SN Ratio: 34dB
  • Spectral Range: 380-650nm (with IR-filter)
  • Binning: 1x1, 2x2, 4x4
  • White balance: ROI White Balance/ Manual Temp-Tint Adjustment
  • Color Rendering Technique: Ultra Fine Color Engine
  • Capture/Control API: Native C/C++, C#, Directshow, Twain, Labview
  • Recording System: Still Picture and Movie
  • Cooling System: Natural
  • Operating Temperature: -10° C~50° C
  • Storage Temperature: -20° C~60° C
  • Operating Humidity: 30~80° RH
  • Storage Humidity: 10~60° RH
  • Power Supply: DC 5V over USB Port

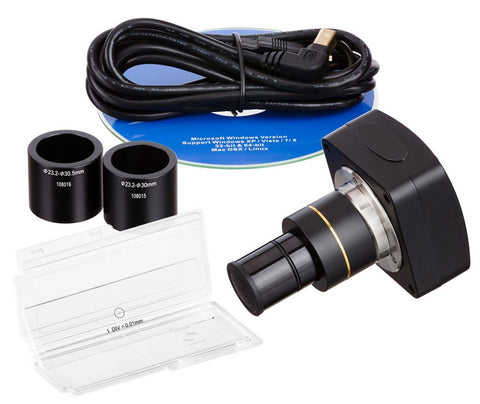

Package includes...

  • 10 MP Digital Camera
  • 0.5X Reduction Lens
  • 6' USB Cable
  • 30mm x 30.5mm Adapter
  • Calibration Slide
  • CD with Software & User's Instructions
