810-193-21A Mitutoyo Rockwell Hardness Tester HR-430MR Hardness Testers Mitutoyo

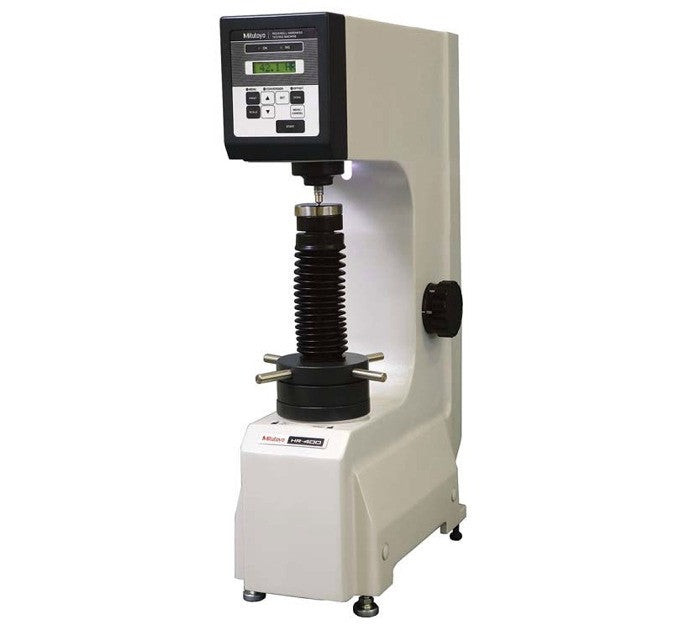

810-193-21A Mitutoyo Rockwell Hardness Tester HR-430MR

$ 11,100.00$ 9,490.50

Customer Reviews

Product Description

Mitutoyo's Rockwell Hardness Testing Machine

Mitutoyo's economy-type tester loaded with the features of a more expensive tester such as an Automatic Brake and Start system that stops the application of the initial (Minor) test force and starts the total (Major) test force cycle. Dial Selection of total test force.

The newly designed frame provides maximum clearance for positioning the workpiece. A flat table is all that is needed for mounting these testing machines.

Features include...

  • 98.07N (10kgf) / 29.42N (3kgf) Preliminary Test Force
  • Matrix Backlight LCD Display
  • 0.1 HR Hardness Min Value
  • 7.1" Max. Specimen Height
  • 110 lbs Machine Weight

Scale Conversions...

  • HRC, HRB, HV, HBW, HS, Mpa plus offset, OK/NG

Rockwell Test Force...

  • 588.4N / 60kgf
  • 980.7N / 100kgf
  • 1471N / 150kgf

Includes FREE On-Site Installation & Initial Calibration!
