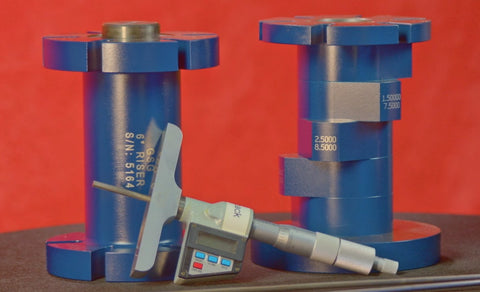

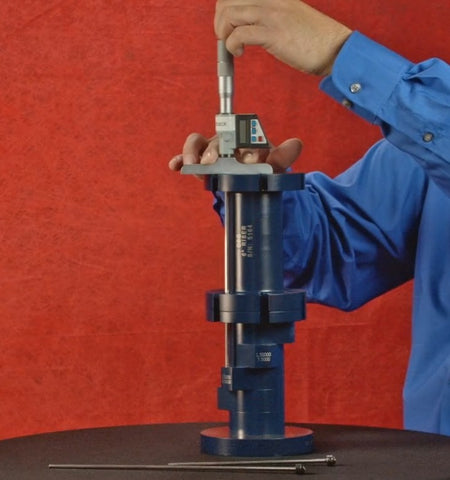

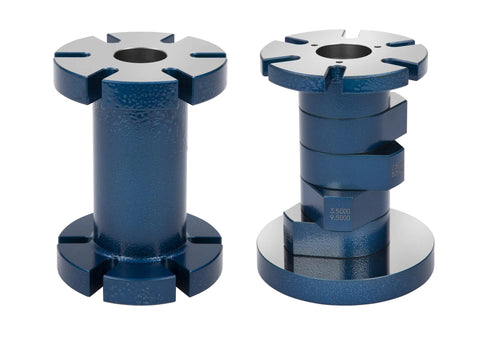

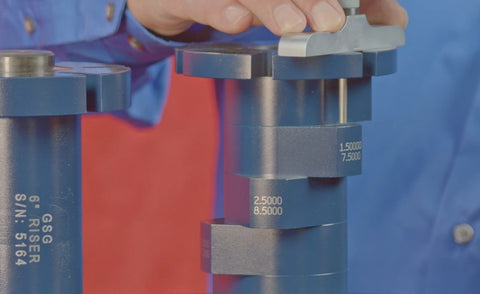

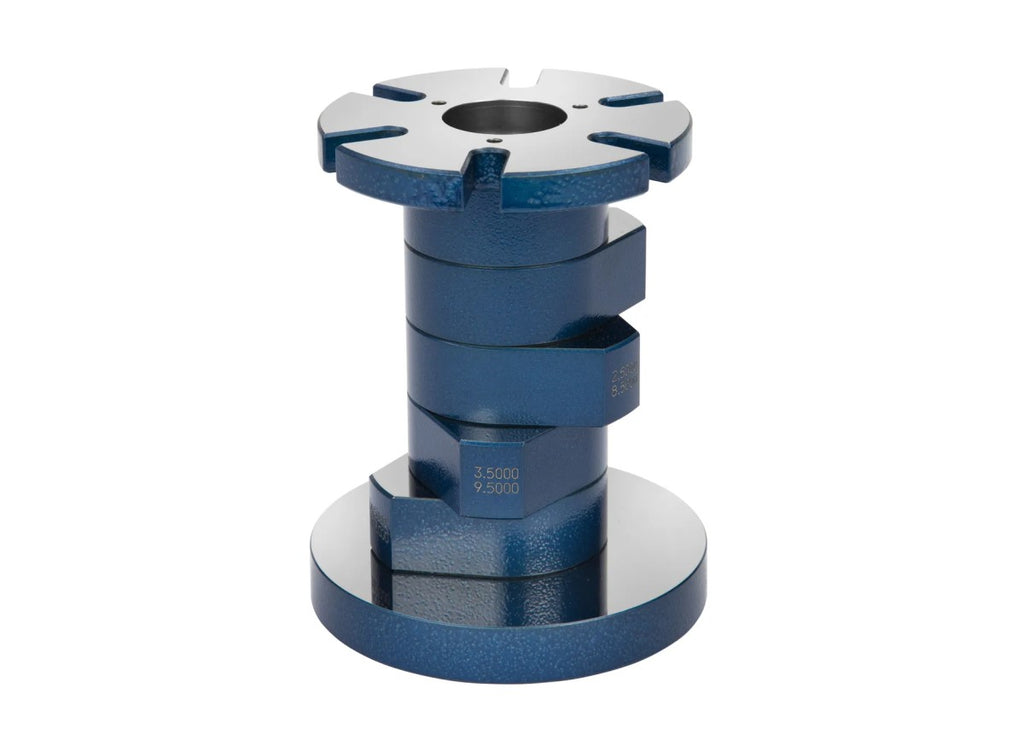

GSG Depth Micrometer Calibration Master

The GSG ADM Depth Mic Masters come in both English & Metric versions. The two piece construction allows you to check depth micrometers with a range of .500" to 11.500" in standard or 12.5mm to 287mm in Metric. Each landing is divided into 1.00" or 25.4mm steps.

Features include...

• 6 Measuring / Setting Steps
  • Inch Version
    • .50", 1.50", 2.50", 3.50", 4.50", 5.50"
    • +0.0001" Accuracy
  • Metric Version
    • 12.5mm, 37.5mm, 62.5mm, 87.5mm, 112.5mm, 137.5mm
    • +0.0025mm Acuracy

With Optional Riser...

• Inch version
  • .50", 1.50", 2.50", 3.50", 4.50", 5.50", 6.50", 7.50", 8.50", 9.50", 10.50", 11.50"
  • +0.0002" Accuracy
• Metric Version
  • 12.5mm, 37.5mm, 62.5mm, 87.5mm, 112.5mm, 137.5mm, 162.5mm, 187.5mm, 212.5mm, 237.5mm, 262.5mm, 287.5mm
  • +0.0025mm Acuracy

Lead Times are about 4-6 weeks ARO.

Select Inch / Metric from Pulldown Menu
