CMCK-S FixLogix CMM Fixture Metric Component Kit for small CMMs

$ 960.00$ 912.00

Customer Reviews

Product Description

The FixLogix CMM Fixture Metric Component Kit for smaller CMMs is designed for smaller CMMs and smaller parts.

The kit design and configuration allows individual components to be multi-tasked and combined into an unlimited variety of fixture setups for a wide range of part types.

FixLogix components are compatible with our FixLogix CMM Fixture Plates. These components are predominantly stainless steel and anodized aluminum for corrosion resistance.

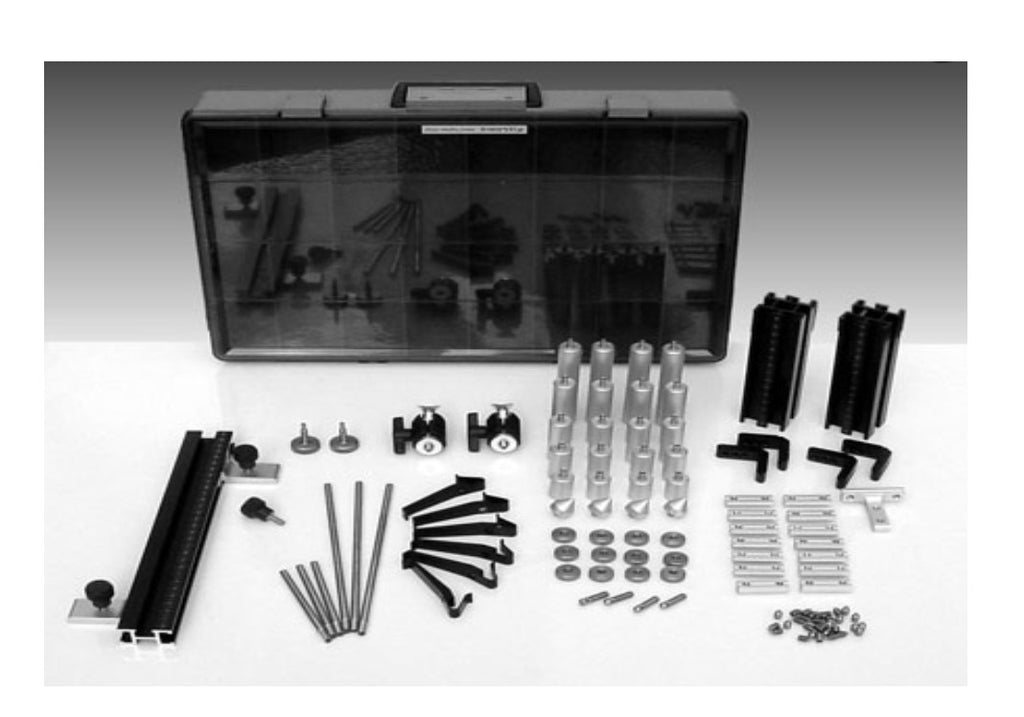

Includes the following components...

  • Standoffs
    • (4) #MCS19-25: 25mm length x 19mm dia. standoff
    • (4) #MCS19-38: 37.5mm length x 19mm dia. standoff
    • (4) #MCS19-50: 50mm length x 19mm dia. standoff
    • (4) #MCS19-75: 75mm length x 19mm dia. standoff
    • (4) #MCS19-100: 100mm length x 19mm dia. standoff
  • Fasteners
    • (12) #MCLN: locknut with M6 threaded ID
      • (For use with clamp rods, thumbscrew, and spherical locator pin)
    • (30) #MCTS8: M6 set screw SS, with nylon tips
      • (Used in T-nuts and right angle 2-way T-nuts)
    • (12) #MCTN1: T-nuts, 37.5mm long with (2) M6 threaded holes
      • (Used in T-slots of fixture plate or vertical riser)
    • (3) #MCTS: stainless thumbscrew with knurled top
      • (For use with cross-slide)
  • Clamps and Rods
    • (6) #CTSC01: “Soft-touch” self-wedging tail-spring clamp
      • (Patent pending self-wedging clamp works with clamp rods)
    • (3) #MCR6-100T: Stainless clamp rod, 100mm long with M6 threaded end
      (3) #MCR6-200T: Stainless clamp rod, 200mm long with M6 threaded end
      • (Use with locknut to attach rods to plate or standoffs)
  • Locating Accessories
    • (2) #MCJSM6: Mini jack-screw with M6 thread
      • (Jackscrew and locknut are attached to standoff to create a mini jackstand)
    • (4) #MCCLL19: small conical locators, 19mm dia. with M6 stud
      • (For locating in holes 2.5mm- 17.5mm, and for creating Vee configurations)
    • (2) #MCSWS: Swivel head assembly for horizontal or angular clamping setups, M6 post
      • (For multi-angle clamping or basing points)
    • (1) #MCCSA-300, Cross-slide assembly, 300mm, laser engraved, with mounting clamps
      • (Provides infinite adjustment between t-slots, and can be rotated)
    • (4) #MCAR0251: Adjustable rest button, stainless, spherical top, M6 thread
      • (Used with standoff, creates a 2-way locator or mini jackstand w/ spherical tip)
  • Risers and Accessories
    • (2) #MCLR150: 150mm vertical linear riser, laser engraved, w/ six t-slots: 2 x 2 + 1 x 1.
      • (Provides vertical setup functionality, laser engraved scales for easy repeat setups)
    • (4) #MCAC-901 Right-angle connectors for risers, with (6) M6 threaded holes
      • (Provides flush mounting for a 2-way t-nut, with extra hole for components)
  • Component Case
    • (1) #CKCC: Component case with compartments, 475mm x 300mm x 75mm
