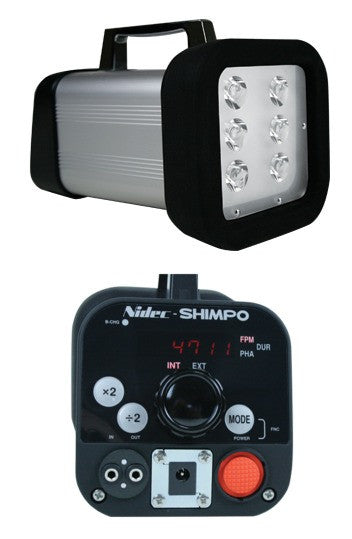

DT-365E LED Portable Stroboscope

DT-365E LED Portable Stroboscope

  • $ 1,250.00
  • Save $ 65.79


The DT-365E High-Intensity, Battery Powered LED Stroboscopes are velocity analyzing and measuring devices that are ideal for machinery process inspection. The DT-365E Stroboscopes are capable of flashing their LED lights in a synchronous frequency to the operating machinery, creating the illusion of viewing slowed or frozen images. Utilizing this phenomenon of slowing or stopping the motion with the adjusted flash rate of its LED lights, machine parts and processes may be inspected for defects, aiding in preventative maintenance programs.

Specifications include...

  • Display: 6 digit Red LED
  • Range FPM: 60-120,000
  • Lamp Lifetime: approx 50,000 hours
  • Flash Duration: 0.1 to 3.6°
  • Phase Shift: 0 to 359°
  • Power Requirement: 100 to 230 VAC to included AC Power Adapter
  • Battery: NiMH Rechargeable Battery
  • Synchronization Input Signal: NPN Open Collector 12-24 VDC
  • Input Signal Range FPM: 40-35,000
  • Input Signal Flash Delay FPM: 60-10,000
  • Weight: 4.6 lbs

Lux Rating

  • 6000 FPM & 3.6° (100 us): Distance 8" (20 cm) 10,000 lx with 8.25" (210 mm) irradiation dia., Distance 20" (50 cm) 2075 lx with 10" (250 mm) irradiation dia.
  • 1500 FPM & 3.6° (400 µs): Distance 8" (20 cm) 9,750 lx with 8.25" (210 mm) irradiation dia., Distance 20" (50 cm) 2050 lx with 10" (250 mm) irradiation dia.
