FG-3000R-50 Digital Force Gage 50 kN Range with SPC Output

FG-3000R-50 Digital Force Gage 50 kN Range with SPC Output

  • $ 18,395.00

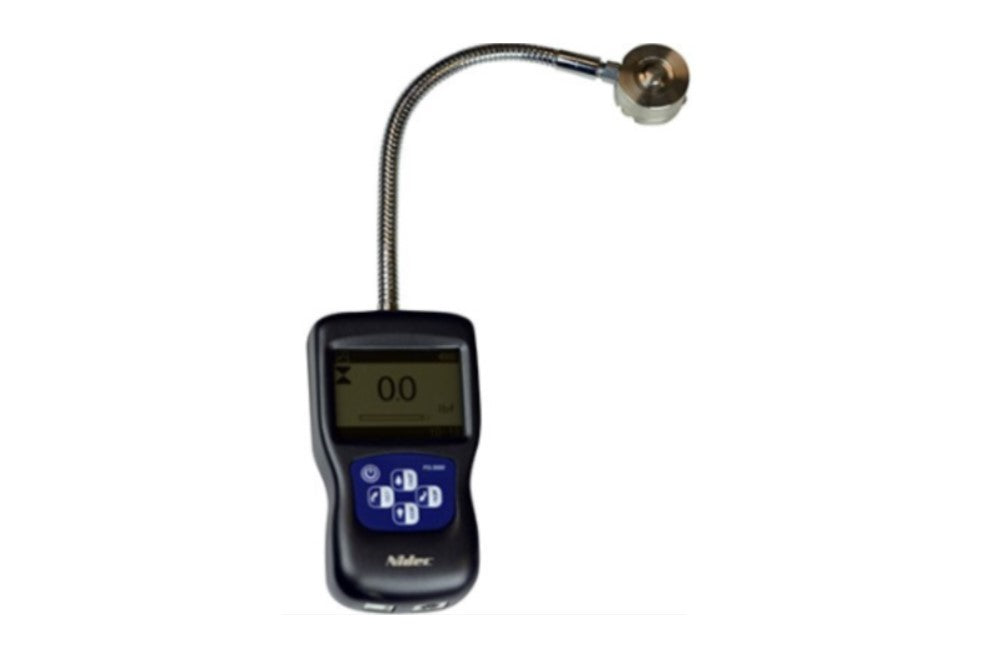

FG-3000R-50 Digital Force Gage

Specifications include...

  • 11 klb / 5000 kg / 50 kN Capacity
  • 0.01 klb / 1 kg / 0.01 kN Resolution

The new FG-3000R Series digital force gauges are the choice for simple, cost-effective compression testing.

Combining one of the most compact housings, yet maintaining a large back-lit LCD, these units were designed to fit perfectly in the hand for ease of use. The integral button style load-cell attached via the flexible, metal braided cable enables readings to be taken in machinery or fixtures where other force gauge adapters are unable to reach or fit. The multi-language FG-3000’s provide menu programming for intuitive set-up of the instrument to your desired requirements.

Three modes of operation are selectable:
  • Track mode displays live readings
  • Peak mode records the maximum reading sensed during the test
  • Pre-set mode which activates user defined high and low limit set points.

The display graphics facilitate user comprehension and operation. An analog bar graph provides perspective of current reading in comparison to the full scale range. Pass/Fail icons provide an instant response of the testing outcome while a storage symbol acknowledges when a reading is logged. A menu-selectable display orientation streamlines switching from push to pull testing for portable or test stand applications.

These high-tech instruments can log up to 500 readings at the push of a button for instant data acquisition. The data can be viewed on screen, sent to optional printer, or uploaded on the free software program for graphing and statistical analysis.

Features include...

  • 1000 Hz Sampling Rate
  • Accuracy: +0.3%
  • USB / RS-232 Outputs
  • 150% Overload Capacity
  • Selectable Auto-Shut Off
  • USB cable included

Included in the package...

  • AC Adapter / Charger
  • Carrying Case
  • USB Cable
