GageWay PRO4 Gage Interface to USB Keyboard Gage Interface Box MicroRidge

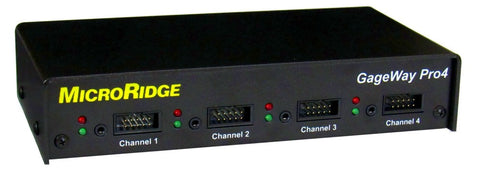

GageWay PRO4 Gage Interface to USB Keyboard

$ 715.00$ 679.25

Customer Reviews

Product Description

GageWay PRO4 Gage Interface Box to USB Keyboard

Send data directly to ANY Windows-based software---No Software Wedge Required

The GageWay Pro interfaces are the fastest, most advanced and configurable interfaces available today. These interfaces support a wide range of digital gages and serial devices from manufacturers including Mitutoyo, Mahr Federal, Ono Sokki, Fowler, INSIZE, Starrett, Sylvac, Ohaus, Mettler Toledo, etc.

We always recommend using a Mitutoyo-style gage interface cable with the GageWay PRO interfaces.

Features include...

  • All front panel input ports support Mitutoyo (also gages with Mitutoyo compatible output), Mahr Federal, Ono Sokki, Fowler, INSIZE digital indicators, RS-232, etc.
  • RS-232 devices are connected via a low cost Level Converter cable (P/N: GW-LC) and your gage cable.
  • The AutoBaud feature can automatically determine the RS-232 baud rate and communication parameters for any of the front panel input ports.
  • USB Keyboard Wedge and USB serial ports are built into the GageWay Pro interfaces.
  • No driver installation required for the keyboard wedge function (driver installation required for the USB serial port).
  • Powered by the USB connection to your PC.
  • Supports baud rates from 1200 to 57.6K.
  • Includes a 6′ USB cable.
  • Get a gage reading by pressing a foot switch (or hand switch), a computer command or the read button on your gage cable.
  • Configure via an easy-to-use Windows-based Setup Program. You do not have to open the interface to configure it.
  • To maximize the measurement collection speed, each gage channel has a dedicated processor and there is a communications processor to manage the communications with the gage channel and the host computer. For example, the Pro8 interface contains 8 gage processors and 1 communications processor for a total of 9 processors.

Includes high speed continuous read operation. Test run with 8 Mitutoyo gages in a continuous read mode for 60 seconds gave the following results...

  • Previous Mx8 interface captured 984 measurements in 60 seconds.
  • Current Pro8 interfaces captured 5,230 measurements in 60 seconds.
