GageWay SM to USB for Mitutoyo Gage Interface MicroRidge

GageWay SM to USB for Mitutoyo

$ 180.00$ 170.00

Customer Reviews

Product Description

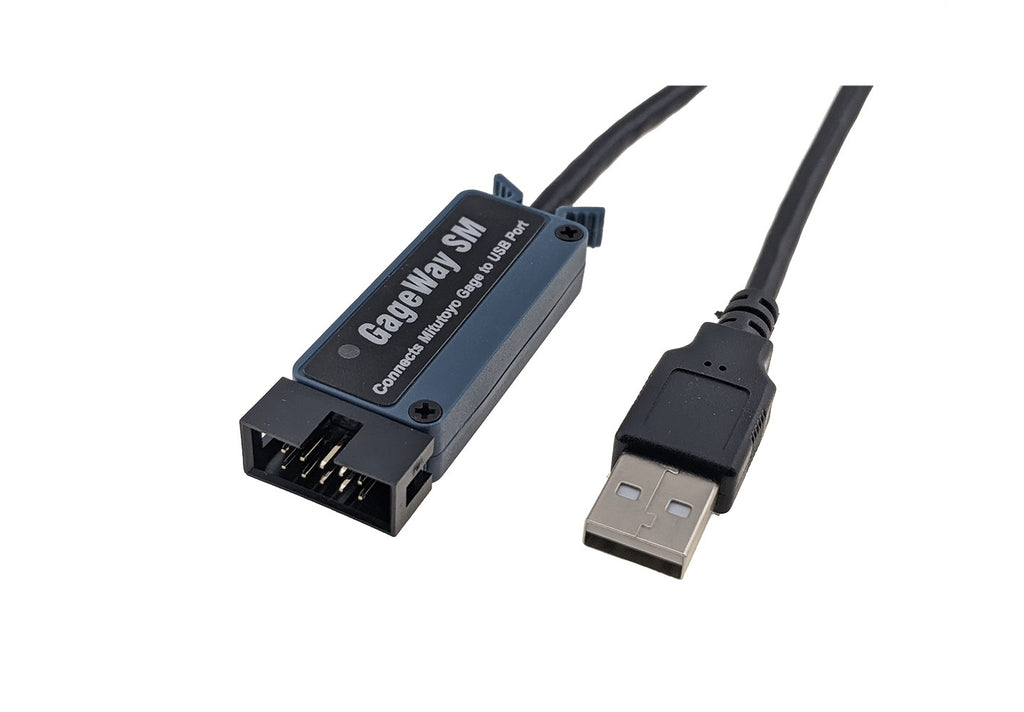

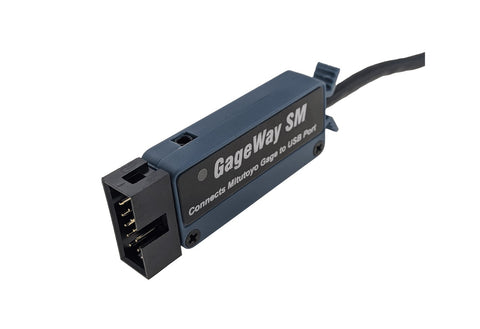

The GageWay SM is an easy-to-use interface designed to connect a single Mitutoyo digital gage (calipers, micrometers, digital indicators, etc.) to a USB port. The GageWay SM interfaces also support any gage that provides a standard Mitutoyo output (CDI, Federal Maxum, etc.). When using the USB version of the GageWay SM, the USB connection looks like a standard RS-232 serial port to your PC application.

Features include...

  • No baud rate or communication parameters required. The GageWay SM is pre-configured to operate at 9600-N-8-1. (USB driver installation may be required for USB version. Required Windows 2000 or later).
  • Standard length is 72 inches.
  • Supports Mitutoyo gages and any gage that provides a standard Mitutoyo output.
  • Standard Mitutoyo cables can be used without modification.
  • Plugs directly into a standard USB port.
  • Powered by the USB port. No external AC adapter is required.
  • Data output format set to gage measurement followed by a carriage return. No leading spaces are sent with the reading.
  • Initiate single and continuous gage readings with the read button on the gage, an optional foot switch or hand switch, or a simple computer command. The optional foot or hand switch plugs into a connector on the side of the GageWay SM.
  • LED flashes when a gage reading has been obtained.

Requires Mitutoyo gage & Mitutoyo SPC Cable
