GS-T580C-TP Trinocular Compound Microscope with 9.7

GS-T580C-TP Trinocular Compound Microscope with 9.7" Monitor, 40X-2500X

$ 1,630.99$ 1,525.99

Customer Reviews

Product Description

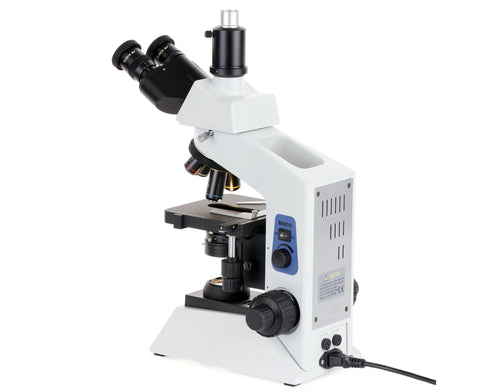

The GS-T580C is a solid midrange compound microscope for biological applications. An ideal choice for veterinarians, breeders, and clinics, this instrument has proven reliability and optical quality. It boasts features such as a compensation-free Siedentopf head, smooth stage translation, and a precision focus system with easy tension-adjustment and vertical-lock. The simul-focal trinocular head provides a dedicated photo port which can be used simultaneously with both eyepieces. The magnification range can be expanded with a large selection of objective and ocular lenses.

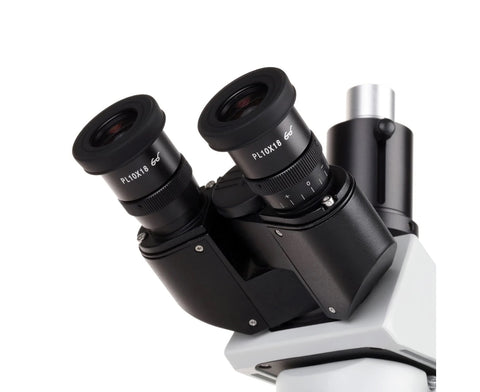

To customize the microscope to your viewing comfort, the eyepiece spacing can be easily adjusted using a precision Siedentopf mechanism. A diopter is available on the both ocular tubes to compensate for asymmetry, and the ocular tubes are angled at 30° to comfortably accommodate a seated position without neck strain. The 23mm photo port is height-adjustable to match focus with the eyepieces, and does not require any switching, allowing all three optical ports to be used simultaneously.

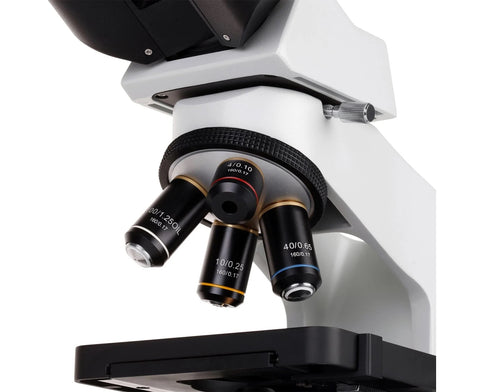

The objective turret provides instant access to 4 magnification levels to easily focus in on minute details from 40X to 1000X. Additional 25X eyepieces expand the maximum magnification to 2500X with 6 unique levels. This covers magnifications needed for studying hair follicles, cells, and bacteria. These high-quality lenses are achromatically corrected to improve resolution and color accuracy.

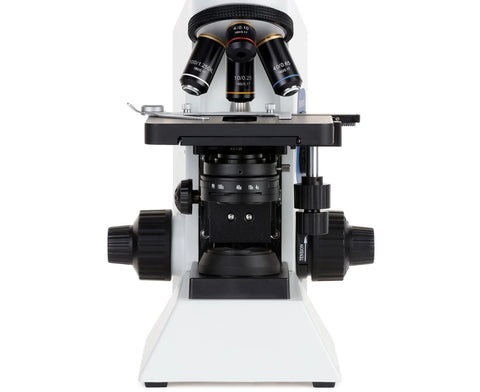

The 2-layer mechanical stage provides smooth and precise movement for examination of specimen slides. The stage's low-position controls are conveniently placed near the coaxial focus knobs for a streamlined workflow. Examining specimen slides is intuitive and precise for users at any skill level. Halogen sub-stage lighting provides bright illumination with excellent color rendering. The warm lighting is better suited for prolonged use, causing less eyestrain than LED and fluorescent lighting. The Abbe light condenser has a high 1.25 numerical aperture for oil-immersion, and an iris diaphragm to optimize contrast and depth-of-field. The condenser holder uses rack-and-pinion movement for precise height adjustment.

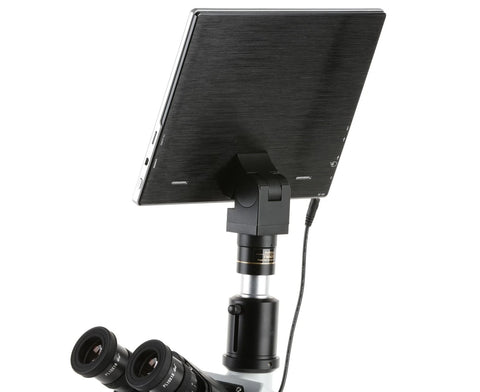

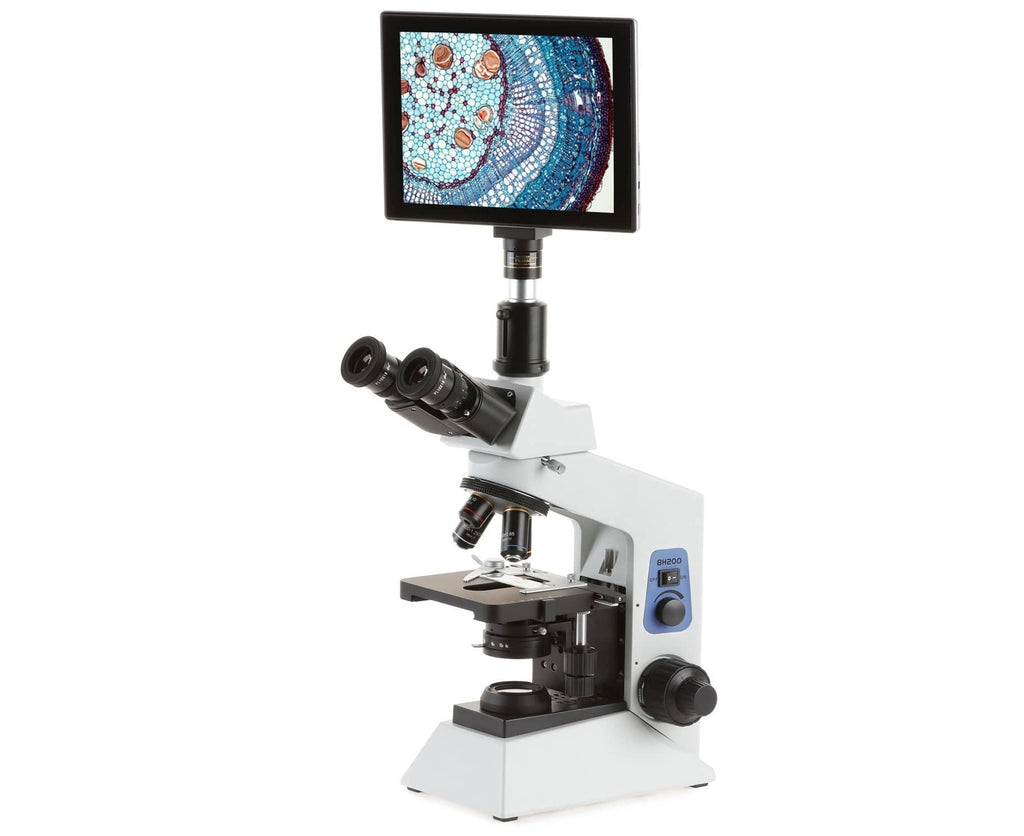

This package includes an all-in-one imaging system which combines the technologies of a 5MP microscope camera with an Android tablet to provide a feature-rich experience like no other. The high-resolution 9.7” screen brings your microscopic subjects to life in vivid color, with 90° tilt and 360° swivel to set the screen to a comfortable angle while standing or sitting. Touchscreen navigation allows you to capture photos and videos with ease using the built-in software, as well as performing measurement functions. With all of the functionality you would expect from a cutting-edge tablet, the possibilities are endless.

For added flexibility, the tablet is equipped with a micro-HDMI output to expand your display to a larger format when needed, such as a television or monitor. When it comes to file storage, you will be spoiled for choices: you can use the internal storage, save to a microSD card or USB device, or transfer files over you wi-fi network. Wi-fi connectivity not only offers networking possibilities for sharing images, but for performing online tasks while you work.

Specifications include...

  • Eyepieces: 10X, 25X
  • Objectives: Achromatic DIN 4X, 10X, 40X, 100X(Oil)
  • Head: 30° inclined 360° swiveling trinocular
  • Interpupillary distance: 55-75mm
  • Ocular Diameter: 23mm
  • Photo Port: DIN Standard
  • 2 Layer Mechanical Stage: 140mm x 132mm
  • Condenser: NA1.25 Abbe condenser with iris diaphragm
  • Transmitted Illumination: 20W Halogen
  • Focusing: coaxial coarse & fine knobs on both sides
  • Power Supply: 85-265VAC 50/60Hz wide-band, AC/DC adapter (UL approved)

Tablet Specifications...

  • OS: Android 4.1.1
  • CPU: 1.8GHz
  • Memory: 2GB (DDR3)
  • Internal Storage: 2GB
  • External Storage: MicroSD (TF) 32GB max, USB
  • Screen Size (diagonal): 9.7"
  • Display Resolution: 2048 x 1536
  • Display Mount: 360° rotation, 90° tilt
  • Sensor Type: CMOS
  • Active Pixels: 5M (2592 x 1944)
  • Shutter: Electronic rolling shutter
  • Photo Capture Resolution...
    • 2592 x 1944
    • 2048 x 1536
    • 1600 x 1200
  • Video Capture Resolution and Maximum Framerate: 15fps @ 2048x1536
  • Connectivity...
    • Micro HDMI
    • USB 2.0
    • Wi-Fi
  • Lens-mount: C-mount
  • Power: 110-220VAC
