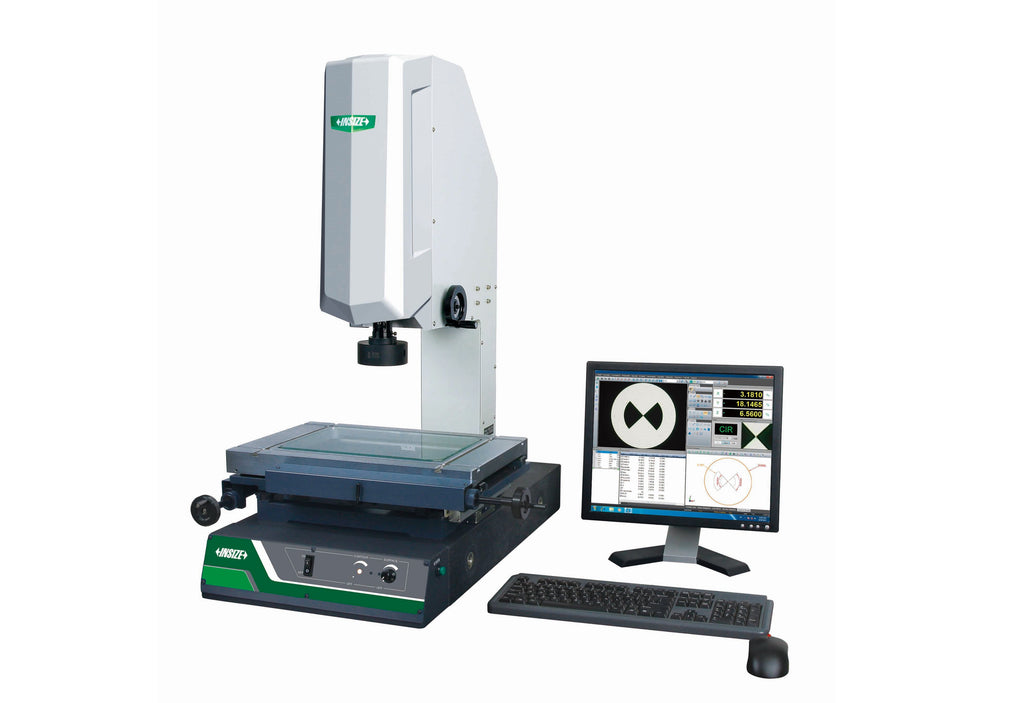

INSIZE Video Measuring System

This is a complete Video Measuring System that also includes a computer system and measurement software.

Specifications include...

• 10" x 6" x 8" (X-Y-Z) Measuring Range
• 17.72" x 11.02" Stage Size
• 12.05" x 7.72" Glass Stage Size
• 0.00002" Resolution
• Accuracy X/Y Axis: <(98.4+10L)uin  L=measuring length in inches
• Objective: 0.7X - 4.5X (zoom)
• Working Distance: 3.62"
• Magnification: 33X - 195X (on 19" monitor)
• Camera: 1/3" color CCD, 0.3 mp
• Illumination: Surface & Contour
• Adjustable LED
• Max Ht of workpiece: 6.3"
• Max Wt of workpiece: 44 lb
• PC OS: WIN 7/8/10
• Manual Stage Movement
• 110/220V Power Supply
• Dimensions...
• 29.92" Long
• 23.62" Wide
• 35.43" Deep
• Weight: 264 lbs

Package includes...

• Main Unit
• PC & Measurement Software
• Calibration Glass Chart
• Laser Positioner
• Foot Switch
• Dust Cover
