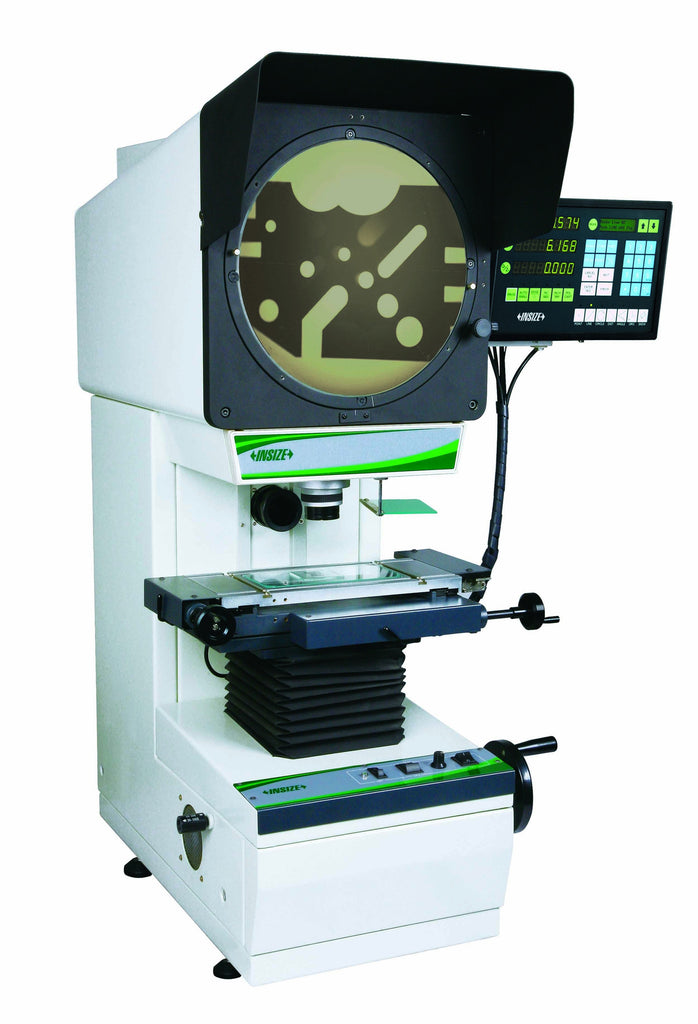

INSIZE Vertical Optical Comparator Inspect your parts with surface and / or profile illumination. This Optical Comparator is built with solid, stable steel construction. The X-Y table positioning is done with ball screws (0.1" / rev), also with quick disconnect for fast positioning. The excellent quality optical system provides clear images and accurate magnifications. Specifications include... 13.3" x 5.9" Table 7.72" x 3.78" Glass Stage Stage Travel 6" X-Axis 2" Y-Axis 3.5" Z-Axis Measuring Accuracy: (157.5+40L)uin: L=measuring length Resolution (X/Y axis): 0.0004" / 0.001mm, 0.00002" / 0.0005mm Features include... 10X Lens Magnification 12" Diameter Screen Includes Crosshair, 30°, 45°, 60° lines for quick angle checking. Free Freight Anywhere in continental USA
