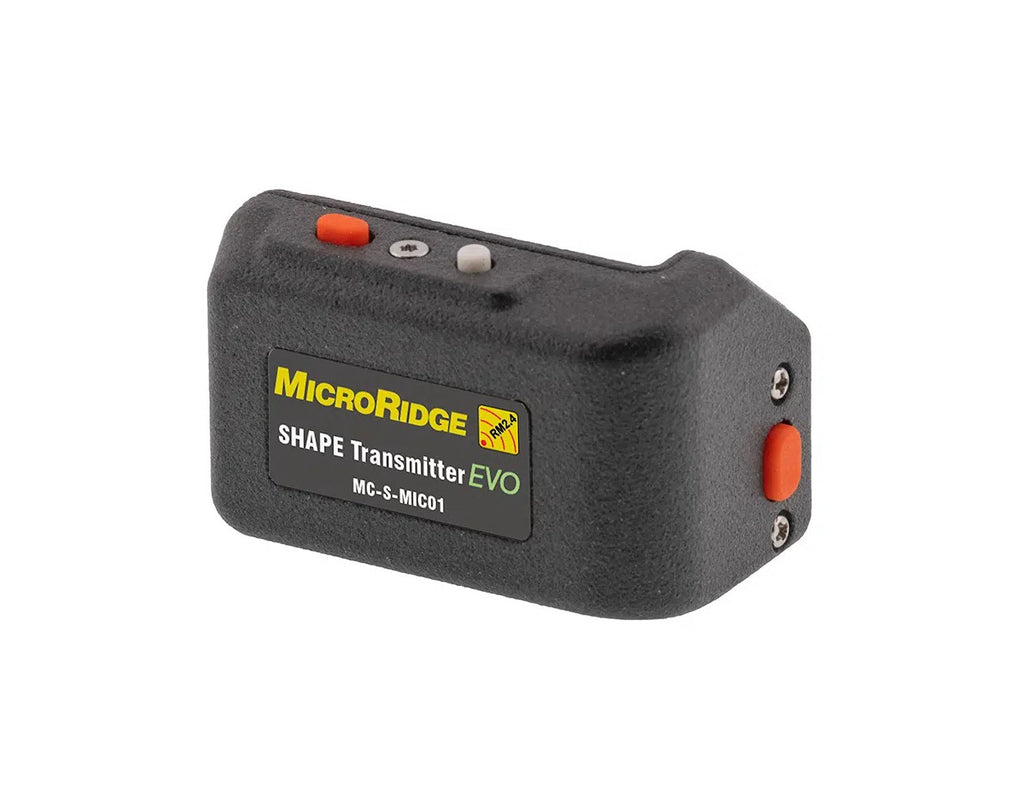

MobileCollect Shape Transmitter for Mitutoyo Micrometers

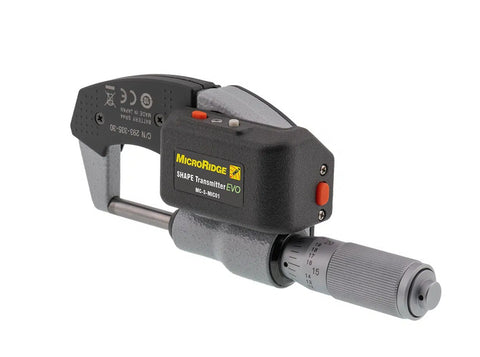

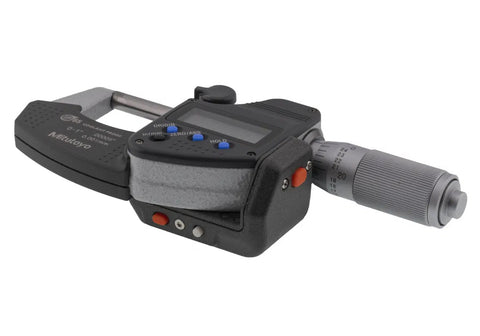

The MobileCollect Shape Mic 01 Transmitter mounts directly to the 5-pin Digimatic SPC output port of your Mitutoyo micrometer and transmits measurement data wirelessly to a MobileCollect Base Receiver, and from there into any PC application or SPC software. No cables, no adhesive mounts, no separate connector to order. One part number, one component, installed in about 30 seconds with a standard #1 Phillips driver.

The true cost of manual measurement data entry in a production environment is well documented: transcription errors, operator fatigue, and lost throughput. The Shape Transmitter eliminates all three at the source, on the gage, without changing how the operator holds or uses the instrument.

Built on the same platform as the Mini Mobile Module EVO, the Shape Transmitter delivers 800,000+ readings on a single CR2032 in both standard and continuous read modes. It ships TriggerSync capable, so SPC software can request readings on demand through the MobileCollect EVO API, and it includes two orange read buttons for orientation flexibility and functional redundancy.

Compatible Gages – 500+ Mitutoyo micrometer models across 18 series
Wireless Range – Up to 100 ft
Battery Life – 800,000+ readings or 3-5 years (CR2032)
Read Modes – Single, Continuous, TIR
Read Buttons – Two orange, independently positioned
TriggerSync – Capable at launch. Host-initiated readings via the MobileCollect EVO API
Mounting – Direct to gage SPC port, no cable, no adhesive
Dimensions / Weight – 2.05″ × 1.25″ × 1.26″ (52.1 × 31.8 × 31.8 mm) / 0.79 oz (22.3 g)
Case Material – Nylon 12, textured
Certifications – FCC (ID: 2ACNQB1), IC (12298A-B1), CE, RoHS2, REACH
Origin – Designed & Made in the USA
