MD10D Digital Length Stop System  GreatGages

MD10D Digital Length Stop System

$ 1,085.00$ 1,030.00

Customer Reviews

Product Description

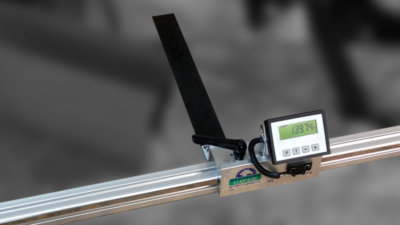

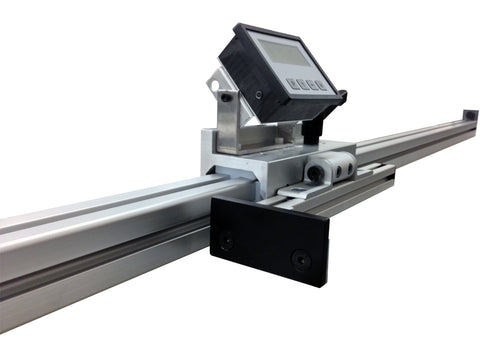

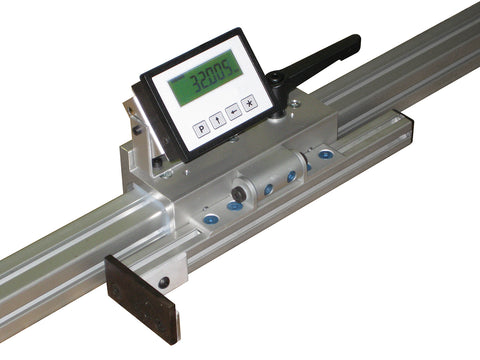

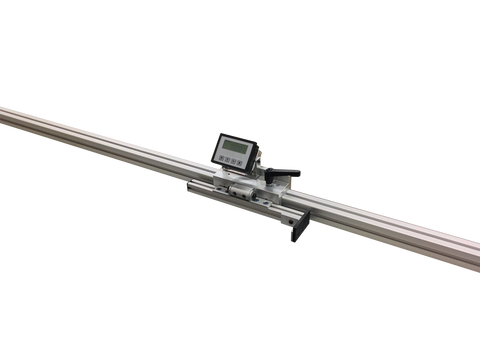

MD10D - DIGITAL LENGTH STOP SYSTEM

The MD10D is a cost-effective way to boost productivity and increase positioning accuracy. Equipped with an IP67 rated linear encoder and Digital Readout that boasts resolutions of 0.001" / 0.01mm, the MD10D helps avoid miscues and reduces material waste.

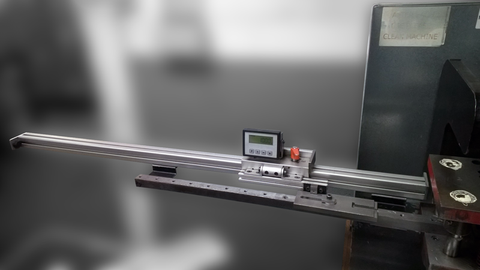

The MD10D is perfect for any ferrous and non-ferrous fabricating equipment that requires accurate and repeatable positioning, such as...

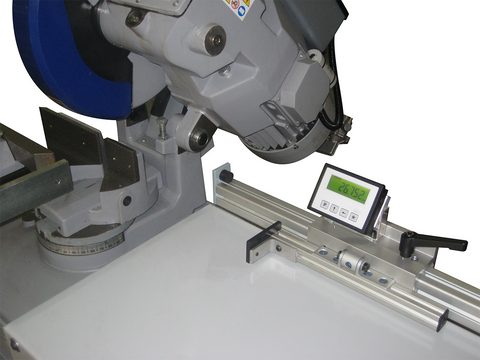

  • Cold Saws, Upcut Saws, Column Saws, Band Saws
  • Drills, Ironworkers, Punch Presses
  • Shears, Press Brakes
  • Custom Machinery as well

These Digital Length Stops are made to order.

Lead time to ship is approximately 8-10 weeks after receipt of order.

Select Measuring Length from pull-down menu.


Complete Package includes the following...

  • Linear Scale
  • Battery Powered Digital Readout
  • Carriage with Adjustable Stop Arm and Brake Handle
  • 1-pc Guide Rail for models 84" and under
  • Mounting Hardware

Mounting Options

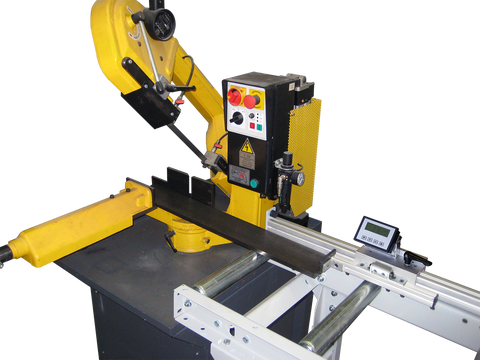

The Digital Length Stop is designed to be mounted on either the left or the right side of your saw / machine. The system includes mounting hardware, and the manufacturer aligns the display according to whether you will be mounting it on the left or right side.

When looking at your saw / machine, please determine if you will be mounting this on the left side or the right side of your saw / machine?

Please select Left Side or Right Side as a Mounting Option.

96" Units and Longer...

UPS has a shipping limit of approximately 105" - 106", so the 96" and longer models are shipped in 1 box with multiple shorter pieces to stay under the 106" limit. Some minor assembly is required upon delivery.

If the customer wants a 96" or longer model shipped as 1 full length piece, we can do that, but it will have to ship via LTL truck. There will be extra shipping costs involved for longer, 1 solid piece LTL shipments.

MD10D Specs

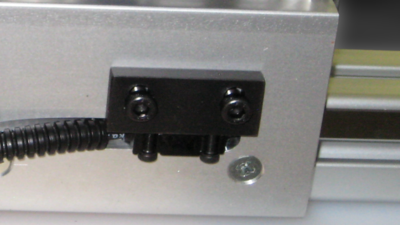

MMP Encoder

NON-CONTACT, WEAR-FREE LINEAR ENCODER

The MD10D encoders use magnetic sending technology, so they work without contact and ensure a virtually wear-free and maintenance-free operation. This ensures high-accuracy measurements for a lifetime.

Unlike rotary encoders, there are no moving parts. All the mechanical components found in rotary encoders (flange, shaft, bearings, etc.) are not needed, which eliminates mechanical failures and deficiencies.

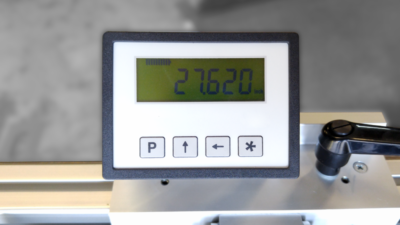

MMP Battery Powered Display

BATTERY POWERED LCD DIGITAL DISPLAY

The MD10D Digital Displays are powered by the standardized and readily available "C" battery with a battery life up to 12 months*.

Features include:

  • Inch, mm, or fractional display with direct button conversion between inch and mm.
  • Can be zeroed or referenced anywhere along the guide rail
  • Battery life indicator

*Dependent on battery type and usage

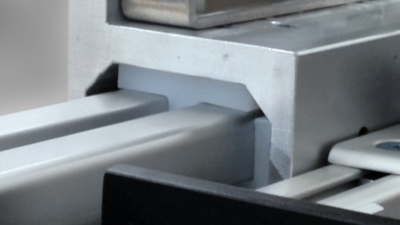

MMP Bearings

Maintenance-Free Bearings

The MD10D utilizes a self-lubricating UHMW bearing pad. This material has a low coefficient of friction, which ensures a smooth carriage travel.

Unlike roller bearings, there is no required lubrication or concerns about breakdown. Thus, maintenance costs and downtime are virtually eliminated.
