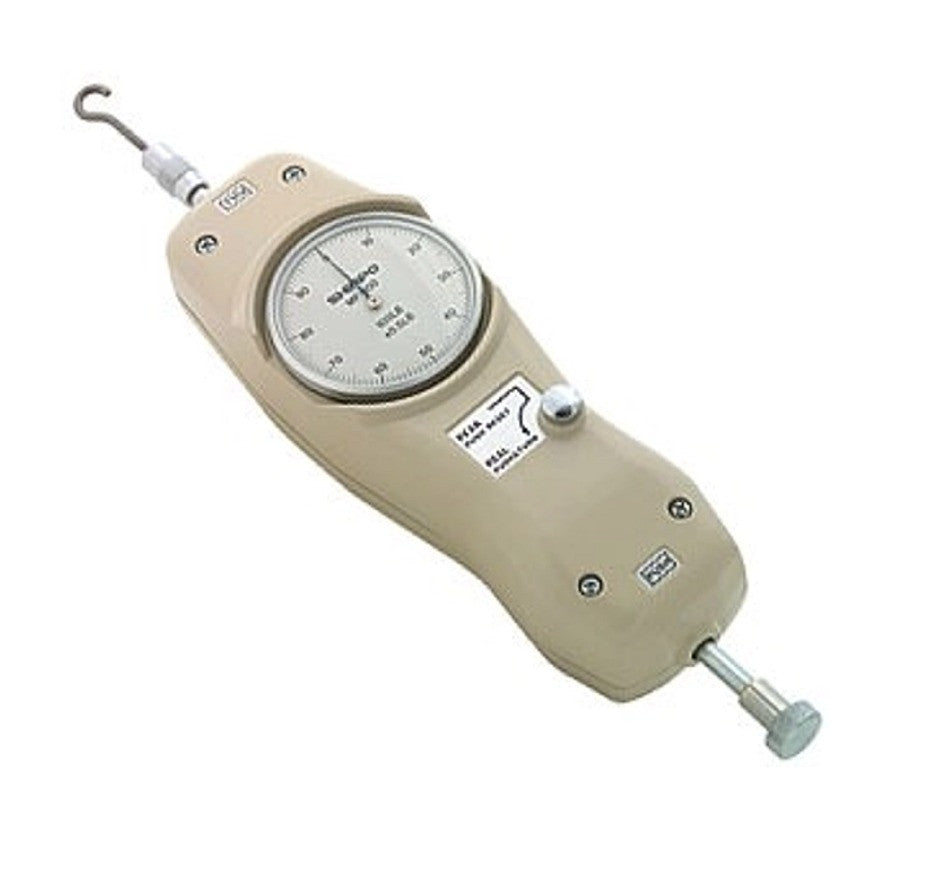

MF-5 Shimpo Mechanical Force Gage
5 lbs Capacity Mechanical Force Gage
- 5 lbs Capacity
- 2" Diameter Display, 360° Rotatable
Incredibly durable and user-friendly, Shimpo's economical mechanical gages are excellent for repetitive testing in assembly line or quality control lab applications. The peak mode features an easy push-button reset; this is especially helpful for doing repetitive testing in an assembly line or quality control lab. The real time mode allows you to see force changes as they occur.
Ergonomically designed for handheld use, these gages may be used with the optional handle (great for loads over 15 pounds). Response time is immediate. Large, easy to read dial indicators are designed to reduce gage parallax.
The MF gages feature a die-cast aluminum housing. Mounts easily to all Shimpo test stands for even greater control of repetitive testing.
- 165 lbs Overload Capacity
- Weight: 1.6 lbs
- Two year warranty
Included in the package...
- Carrying Case
- Flat Head
- Notched Head
- Large Hook
- Cone Head
- Large V-Hook
- Extension Rod
