64PKA117 Mitutoyo Laser Scan Micrometer 500S & Display

64PKA117 Mitutoyo Laser Scan Micrometer 500S & Display

  • $ 9,851.50
  • Save $ 518.50

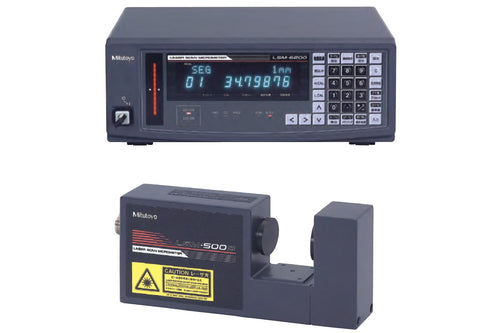

Mitutoyo Laser Scan Micrometer LSM-500S Package

This package includes Mitutoyo's Laser Scan Micrometer model # LSM-500S and their Laser Scan Digital Display model # LSM-6200.

Quicktool is a free downloadable software utility that Mitutoyo makes available for our Laser Scan Micrometer customers that makes programming the LSM-6200 Digital Display very quick and easy.

Mitutoyo's High Accuracy Laser Scan Micrometers offer the following...

  • Excellent linearity: down to +/- 0.3 micron.
  • High-speed scanning capable: 3,200 scans per second.
  • Various ranges available for selecting the best laser for your application.
  • Statistical calculation mode.
  • Memory function has been increased to allow storage of up to 100 programs.
Package includes...
  • Model # LSM-500S Measuring Head
    • .0002" - .08" / .005 - 2mm Measuring Range
    • 3,200 scans per second
    • Display Connecting Cable
  • Model # LSM-6200 Digital Display
    • 7 Digit Resolution
    • SPC Output
    • 2-Inputs Capable
 Mitutoyo Laser Scan Micrometers Brochure... Click Here
